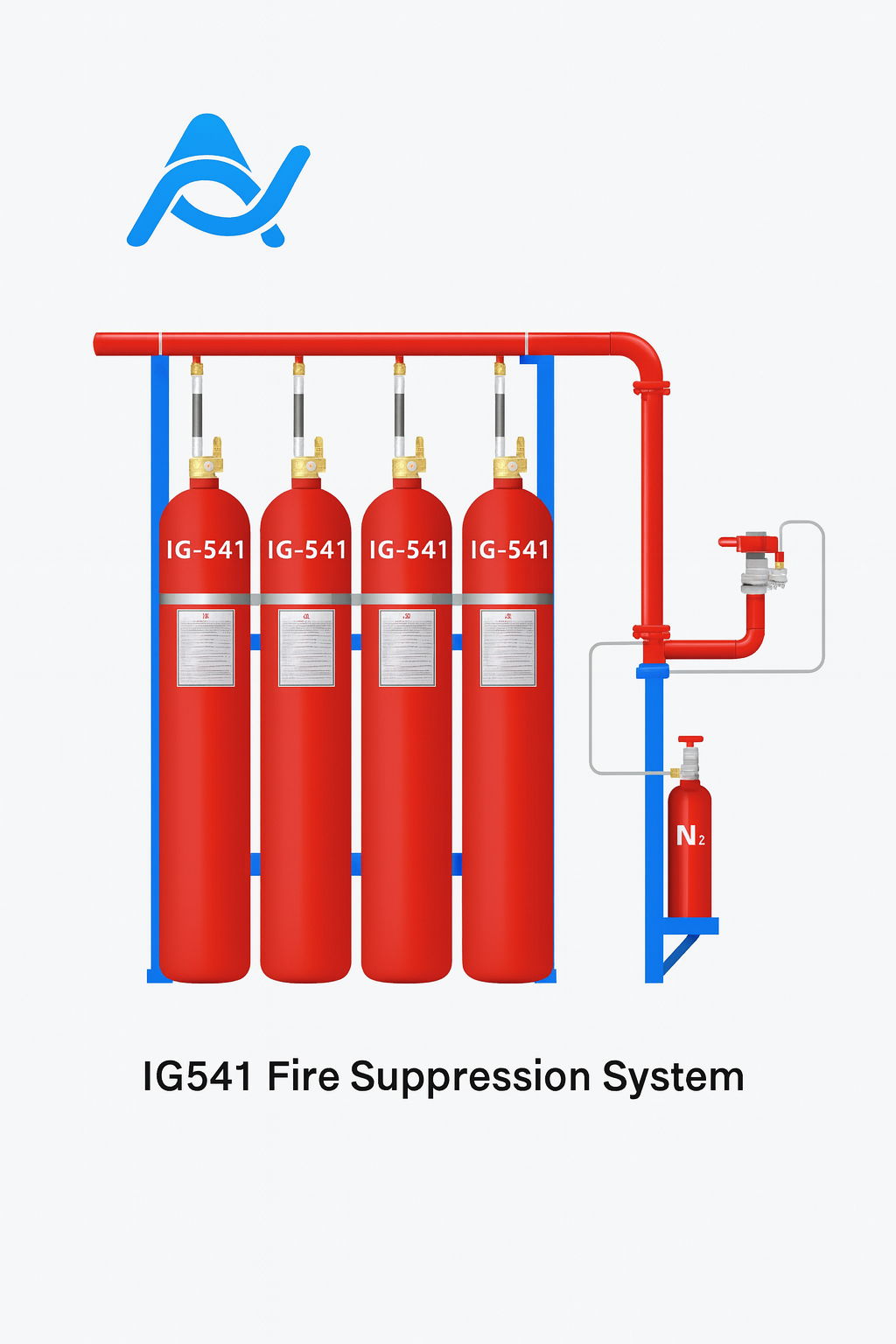

The IG-541 automatic fire extinguishing system is an environmentally friendly inert-gas suppression solution composed of nitrogen, argon, and carbon dioxide.
It achieves rapid flame suppression by reducing oxygen concentration while maintaining safe conditions for personnel and equipment.IG-541 is colorless, odorless, non-corrosive, and leaves no residue—making it the ideal halon-replacement clean agent.
Zero ozone depletion and global warming potential
Electrically non-conductive and residue-free
Supports automatic, electrical, and mechanical activation
Fast discharge and uniform gas distribution
Long service life and low maintenance
Certified to GB25972 / ISO 14520 / NFPA 2001 standards
Data centers & server rooms
Communication facilities
Museums, archives, and libraries
Power plants & control rooms
Oil & gas processing areas
Industrial workshops with high-value equipment
| Parameter | Description |
|---|---|
| Working Pressure | 15 MPa @ 20 °C |
| Cylinder Volume | 70 / 80 / 90 L |
| Discharge Time | ≤ 60 s |
| Power Supply | AC 220 V 50 Hz / DC 24 V 3 A |
| Actuation Pressure | 6 MPa ( N₂ ) |
| Discharge Delay | Adjustable 0–30 s |
| Operating Temp. | 0 °C – 50 °C |
| Agent Composition | N₂ 52 %, Ar 40 %, CO₂ 8 % |
