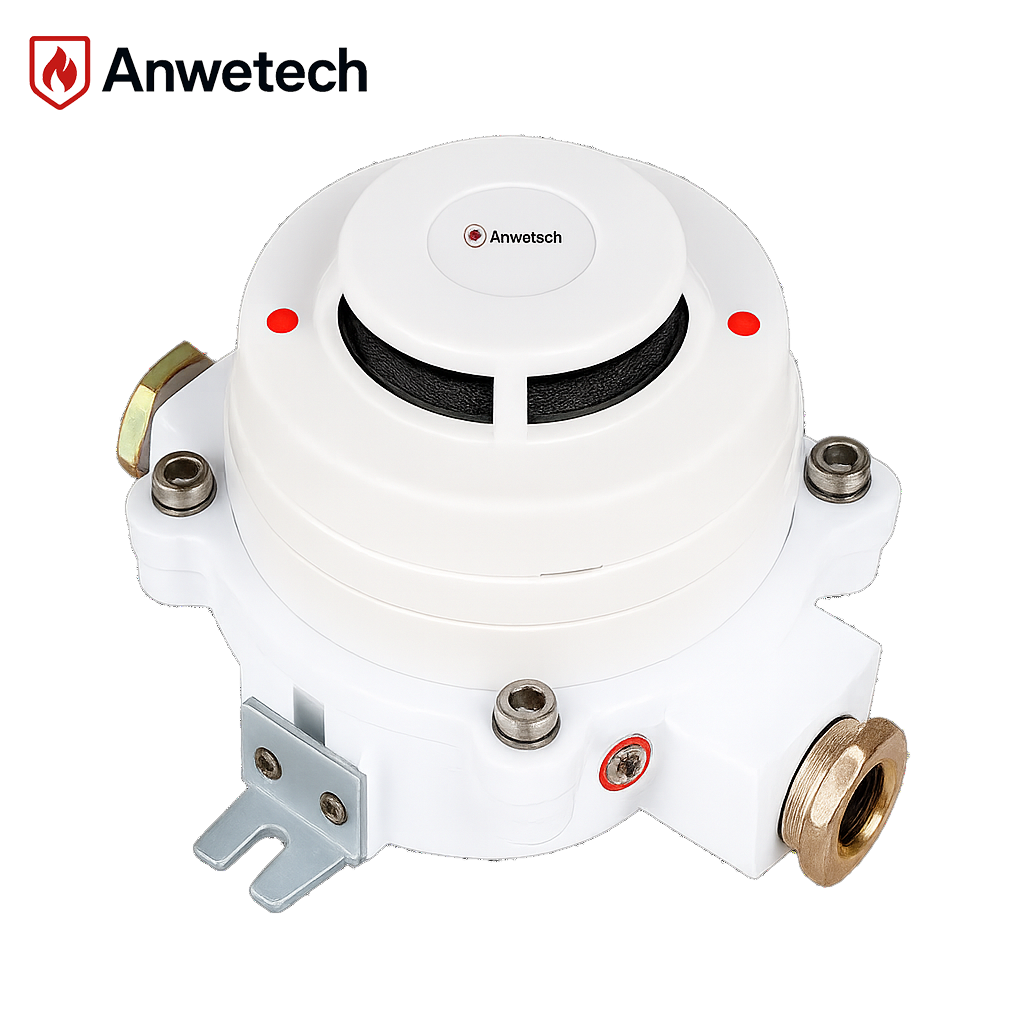

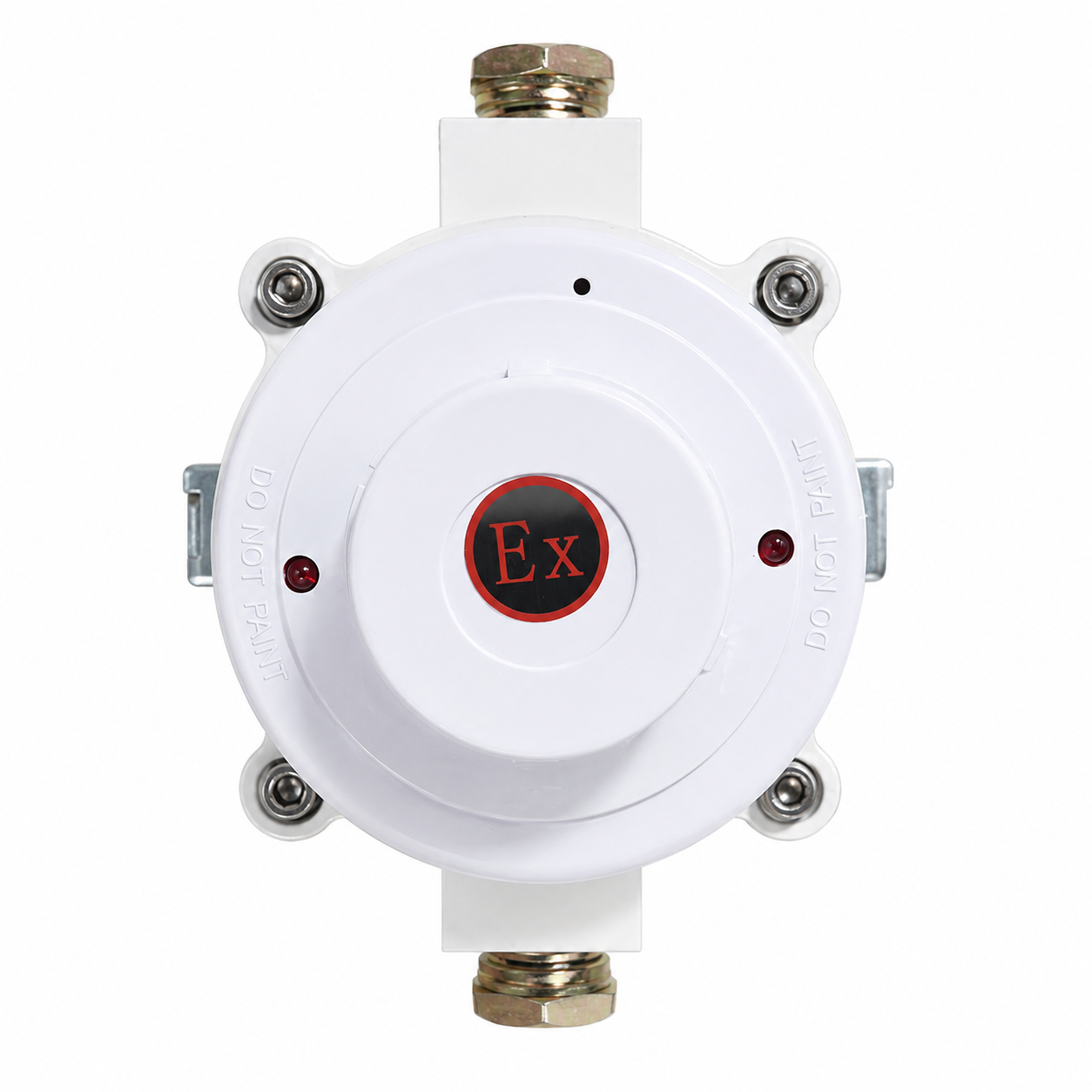

The ANWETECH AT-ES01 is an ATEX explosion-proof point photoelectric smoke detector designed for smoke detection in hazardous industrial areas where explosive gases or combustible dust may be present.
It is suitable for Zone 1 and Zone 2 explosive gas atmospheres containing Group IIA, IIB or IIC gases with temperature classes T1 to T6. It can also be used in Zone 21 and Zone 22 combustible dust environments.
AT-ES01 is a non-addressable, switch-type smoke detector with relay output. It provides Normally Open and Normally Closed contact outputs, allowing connection to conventional fire alarm control panels, fire alarm input modules, gas fire control panels or other compatible alarm systems.
The detector uses light-scattering photoelectric smoke detection technology and a labyrinth sensing chamber design. This structure helps improve stability, anti-condensation performance, dust resistance, ambient light immunity, humidity resistance and chemical corrosion resistance.
When smoke concentration exceeds the preset alarm threshold, the detector indicator changes from flashing red to steady red and sends an alarm signal through the relay contact output. The detector resets after a system reset or brief power interruption.
ATEX explosion-proof smoke detector for hazardous areas
Explosion-proof point photoelectric smoke detection technology
Suitable for Zone 1 and Zone 2 explosive gas atmospheres
Suitable for Zone 21 and Zone 22 combustible dust environments
Applicable to Group IIA, IIB and IIC gases
Suitable for T1 to T6 temperature class environments
Non-addressable conventional type with relay output
DC24V ±2V non-polarized power input
Normally Open and Normally Closed relay contact outputs
Red LED indicator for normal monitoring and alarm status
Light-scattering smoke detection principle
Labyrinth chamber design for stable detection performance
Good resistance to condensation, dust, humidity and ambient light interference
Compatible with conventional fire alarm panels and input modules
Designed for industrial fire alarm projects in hazardous locations
| Parameter | Specification |
|---|---|
| Model | AT-ES01 |
| Product Name | ATEX Explosion-Proof Point Photoelectric Smoke Detector |
| Product Type | Explosion-Proof Smoke Detector / Hazardous Area Smoke Detector |
| Detection Principle | Photoelectric light-scattering smoke detection |
| Detector Type | Non-addressable switch-type detector |
| Certification | ATEX confirmed by ANWETECH; 3C and explosion-proof certification stated in manual |
| Explosion-Proof Mark | Ex db ib II CT6 Gb / Ex ib tb IIIC T80°C Db |
| Applicable Gas Zones | Zone 1 and Zone 2 |
| Applicable Dust Zones | Zone 21 and Zone 22 |
| Applicable Gas Groups | IIA, IIB, IIC |
| Temperature Classes | T1 to T6 |
| Operating Voltage | DC24V ±2V, non-polarized |
| Monitoring Current | ≤150 μA |
| Alarm Current | 10 mA to 30 mA |
| Alarm Output Form | One pair of Normally Open and Normally Closed contact outputs |
| Response Threshold | 0.10 dB/m to 0.27 dB/m |
| Alarm Reset | Momentary power interruption, minimum 10 s, maximum DC2.5V |
| Power-up Time | ≤10 s |
| Maximum Wind Speed | 7.6 m/s, 1500 fpm |
| Alarm Indicator | Red LED flashes during normal monitoring and remains steady during alarm |
| Protection Area | 80 m² when space height is 6 m to 12 m; 60 m² when space height is below 6 m |
| Operating Temperature | -20°C to +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Atmospheric Pressure | 80 kPa to 110 kPa |
| Cable Entry Thread | 2 × G3/4 |
| Weight | 1.2 kg |
AT-ES01 uses DC24V non-polarized power input and relay contact output. The relay output allows the detector to be connected with conventional fire alarm systems, input modules or other compatible alarm control equipment.
| Terminal | Meaning |
|---|---|
| DD | DC24V power input, non-polarized |
| NO | Normally Open contact |
| COM | Common terminal |
| NC | Normally Closed contact |
The detector provides one pair of Normally Open and Normally Closed contact outputs. The final wiring method should follow the fire alarm control panel or input module wiring requirements.
Oil and gas facilities
Petrochemical plants
Chemical processing plants
Hazardous material storage areas
Fuel storage and handling areas
Industrial workshops with explosive gas risk
Combustible dust environments
Paint and coating production areas
Dust collection and processing areas
Battery rooms and industrial utility rooms requiring hazardous area protection
Conventional fire alarm systems requiring relay output smoke detection
