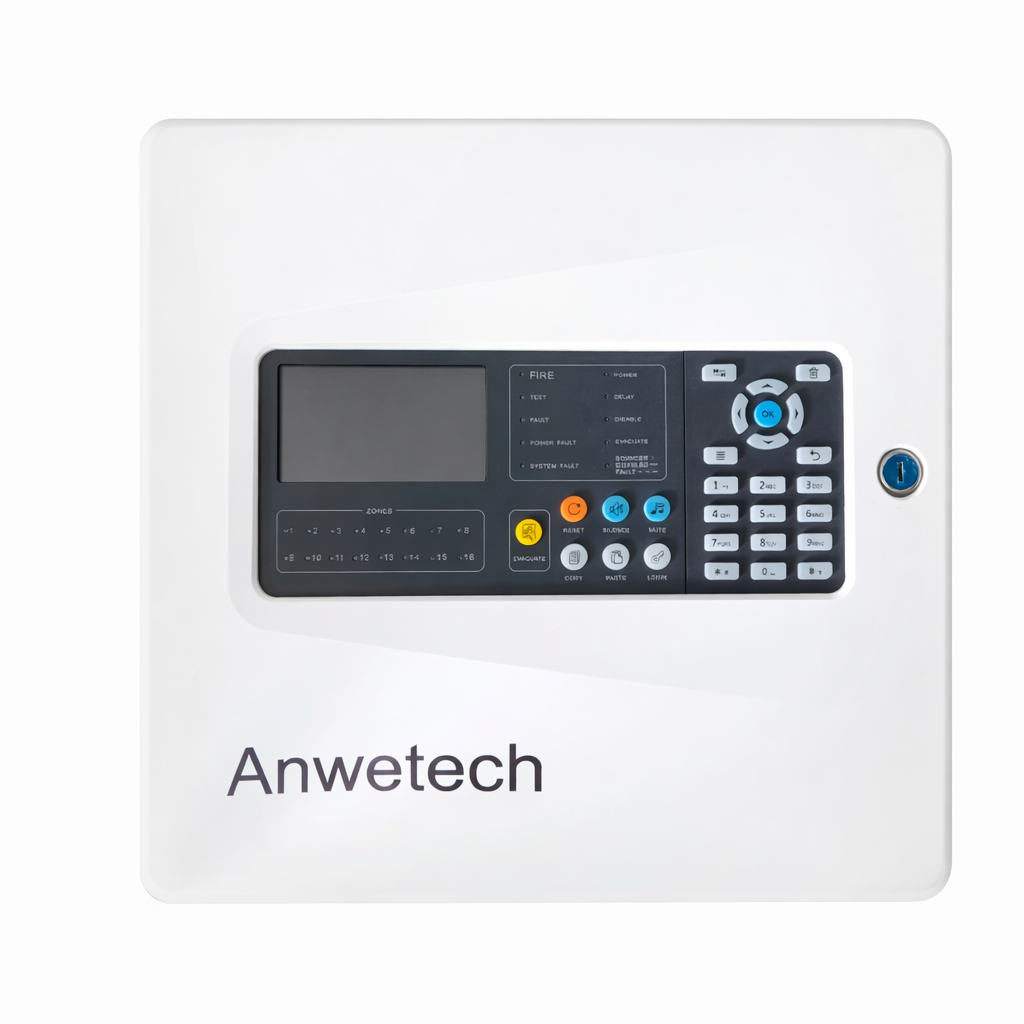

The AT-F101 is a compact and intelligent fire alarm control panel designed to provide reliable monitoring and control for small and medium-sized facilities.
It supports one addressable loop with up to 120 devices and complies with EN 54-2 and EN 54-4 standards.
The system is easy to install, operate, and maintain, offering clear visual indication and flexible configuration options.
• Supports up to 120 addresses on one loop
• The loop supports both Class A and Class B wiring
• 4.3-inch color LCD screen with 480 × 272 resolution
• Zone indicators for 16 zones providing quick alarm identification
• 1,000 event memory for fire, fault, and operation records
• Independently programmable conventional sounder circuit output
• Zone test, point test, and module start/stop test functions
• Three-level user access management for enhanced security
• CAN bus networking for up to 20 interconnected FACPs
The AT-F101 FACP monitors input signals, provides status indications, and activates outputs as programmed.
It features a color LCD display, simple interface, and modular communication design.
The panel complies with EN 54-2 and EN 54-4 standards, ensuring simplicity in installation, operation, and maintenance.
| Parameter | Specification |
|---|---|
| Mains supply | 110/230 VAC (–15 % ~ +10 %), 50 Hz / 60 Hz |
| Mains fuse | T3.15AL250V |
| Operating voltage | 20 ~ 28 VDC |
| Recommended mains cable | Standard black mains cable, 0.75 mm² |
| Power rating | Imin = 0.45 A; Imax.a = 1.15 A; Imax.b = 1.65 A |
| Max. battery supply current | 3 A (when mains disconnected) |
| Max. charging current | 1 A |
| Battery capacity / model | NP7-12 for 7 Ah VRLA (Yuasa) |
| Max. internal resistance of battery | 1 Ω |
| Battery fuse | F6AL250V |
| Quiescent current (full load) | < 0.4 A |
Temperature range: –5 °C ~ 45 °C
Maximum relative humidity: 95 % (40 °C ± 2 °C, no condensation)
• Small commercial buildings and offices
• Hotels, schools and clinics
• Shops, storage rooms and warehouses
• Local addressable fire detection systems
