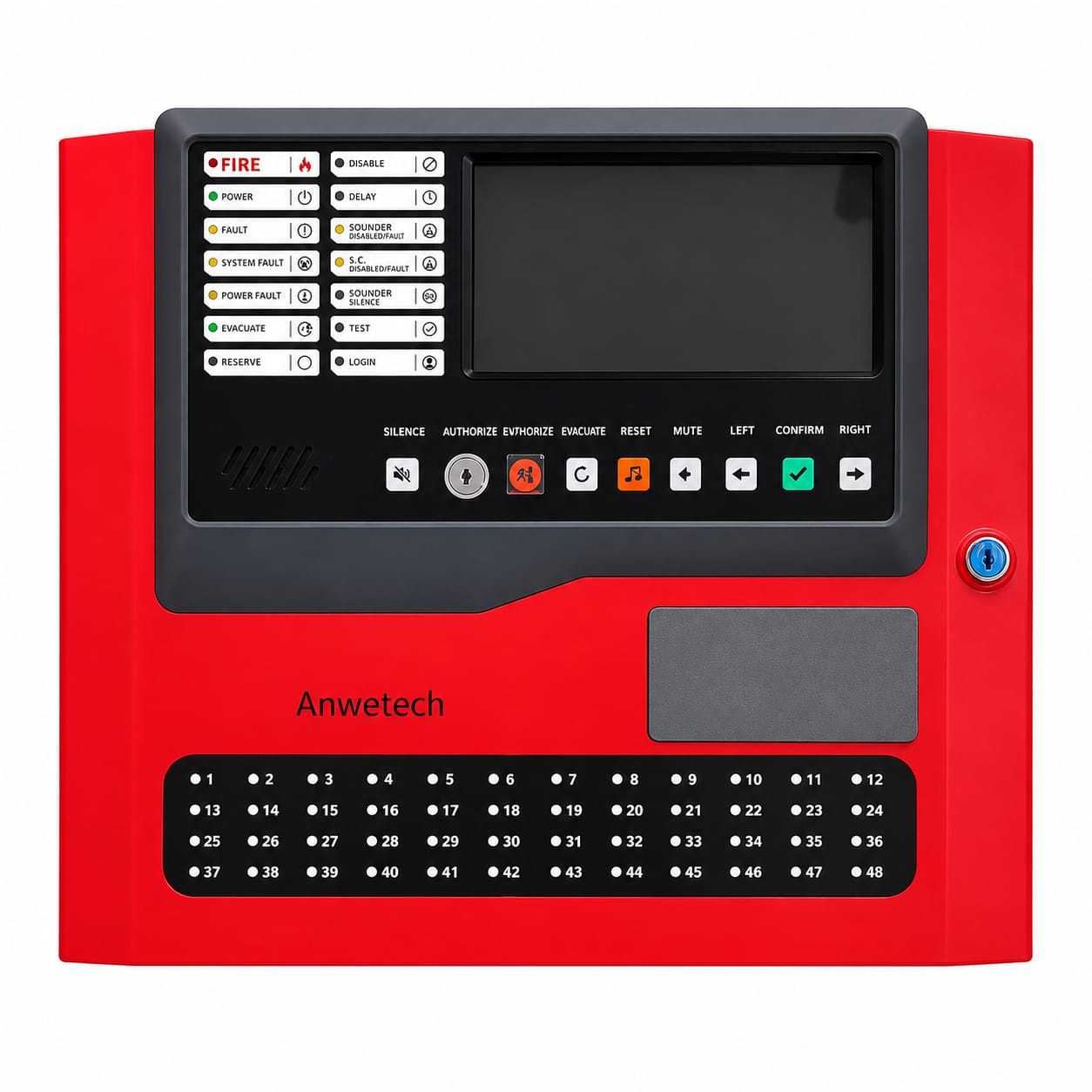

The AT-F102 is a touch-sensitive, addressable fire detection and control panel designed for small to large facilities requiring high reliability and ease of operation.
Each panel supports up to four addressable loops, each loop with 324 addressable devices, ensuring full compliance with EN 54-2 & EN 54-4 standards.
It offers simple installation, intuitive operation, and easy maintenance, making it ideal for commercial complexes, hospitals, and industrial facilities.
Certified to EN 54-2 & EN 54-4 standards optional model for applus certificate fire alarm panel
7.0-inch color touch-sensitive LCD, 800 × 480 resolution
324 addresses per loop, maximum of 4 loops (1,296 devices total)
Supports up to 5,000 fire protection zones with night-mode settings
CAN bus interconnection for up to 60 FACPs and Ethernet for up to 254 FACPs
Event memory: stores 10,000 records each for fire alarm, fault, cause-&-effect, and operation
| Item | Specification |
|---|---|
| Mains Supply | 110/230 V AC (−15 % ~ +10 %), 50 / 60 Hz |
| Mains Fuse | T4A 250 V |
| Operating Voltage | 28 V ± 0.5 V DC |
| Recommended Mains Cable | Standard / Black 1 mm² cable |
| Power Rating | Imax.a = 3.1 A • Imax.b = 5.55 A • Imin = 0.3 A |
| Battery Supply Current (Max) | 8 A (when mains is disconnected) |
| Charging Current (Max) | 1 A |
| Dimensions (W×H×D) | 440 × 400 × 180 mm (2 × 12 V / 12 Ah Battery) |
| Internal Battery Resistance (Max) | 1 Ω |
| Weight (Without Battery) | 9 kg |
| Battery Fuse | 15 A |
| Quiescent Current (Full Load) | < 0.3 A |
| Output Type | Parameter | Specification |
|---|---|---|
| S.C. Out (+, −) | Output Voltage | 20 ~ 28 VDC |
| Max. Output Current | 1 A | |
| End of Line Resistor | 10 KΩ | |
| Cable Diameter | 1 mm² ~ 2.5 mm² | |
| F.A. Out (+, −) | Output Voltage | 20 ~ 28 VDC |
| Max. Output Current | 50 mA | |
| End of Line Resistor | 10 KΩ | |
| Cable Diameter | 1 mm² ~ 2.5 mm² | |
| Fault Out (NC, COM, NO) | Contact Capacity | 2 A @ 24 VDC |
| Cable Diameter | 1 mm² ~ 2.5 mm² | |
| AUX 24 V (+, −) | Output Voltage | 20 ~ 28 VDC |
| Max. Output Current | 2 A | |
| Cable Diameter | 1 mm² ~ 2.5 mm² |
Commercial buildings and offices
Hospitals and public institutions
Data centers and IT facilities
Industrial plants and manufacturing sites
