Detailed Description

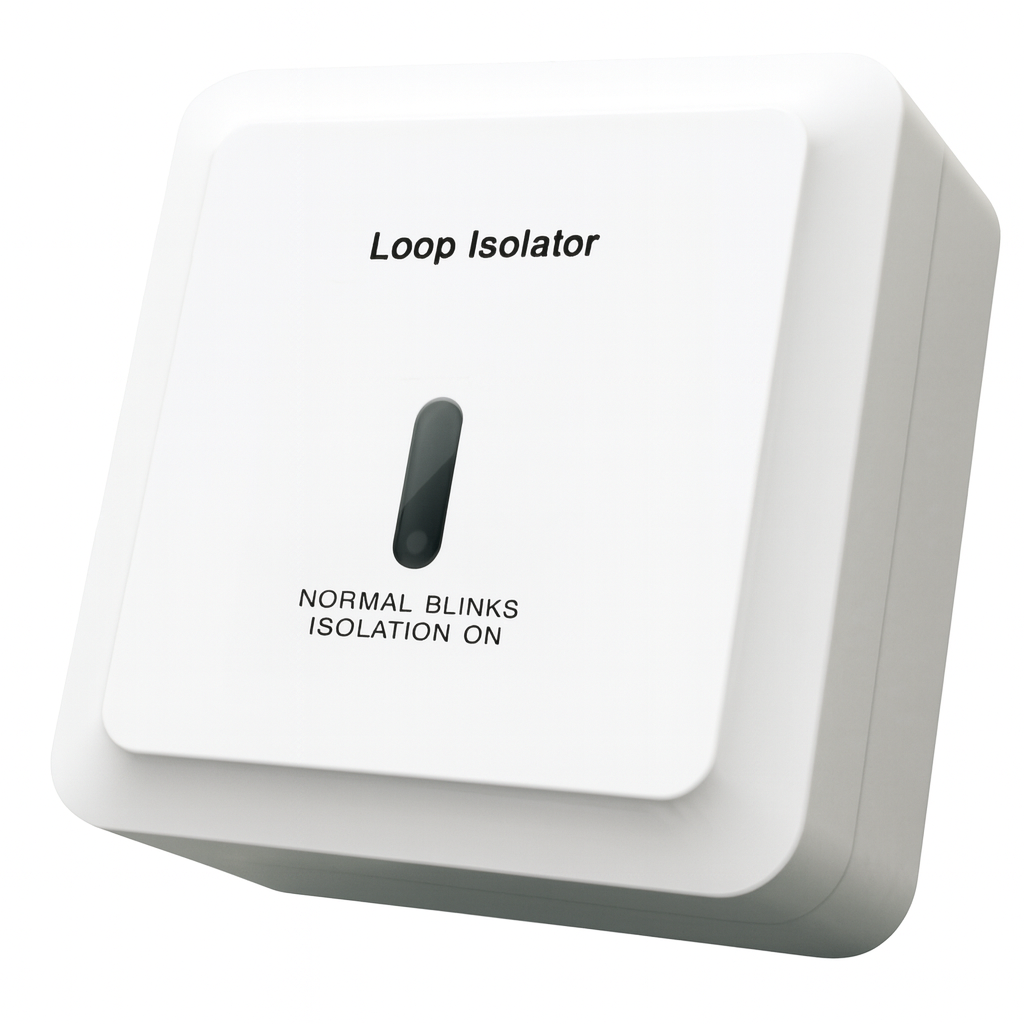

The Anwetech AT-IS103 Short Circuit Isolator provides intelligent protection for addressable fire alarm systems by isolating faulty segments in the event of a short circuit.
It operates with a 24V nominal voltage (16–28V range) and ensures rapid isolation at 11V while automatically reconnecting at 4V.
This isolator supports up to 32 devices per loop, allowing for reliable and scalable fire system installations.
The LED indicator provides clear visual feedback — flashing during polling and illuminating when isolation or alarm occurs — to simplify troubleshooting and maintenance.
Built with a flame-retardant ABS enclosure, the AT-IM101 performs reliably in harsh environments ranging from -10°C to +55°C, ensuring long-term system stability.
Its low current design (<3mA) and automatic recovery mechanism make it ideal for use in industrial facilities, commercial buildings, and infrastructure projects requiring uninterrupted fire protection.
Key Features
Automatically isolates short-circuited loop segments
Restores normal operation after fault clearance
LED indication for status monitoring
Supports up to 32 addressable devices
Fast isolation and reconnection voltage response
Compact and durable ABS housing
Applications
Addressable fire alarm systems in commercial and industrial facilities
Hotels, hospitals, and shopping malls
Office buildings and data centers
Energy plants and infrastructure systems
Large integrated fire detection networks
