Detailed Description

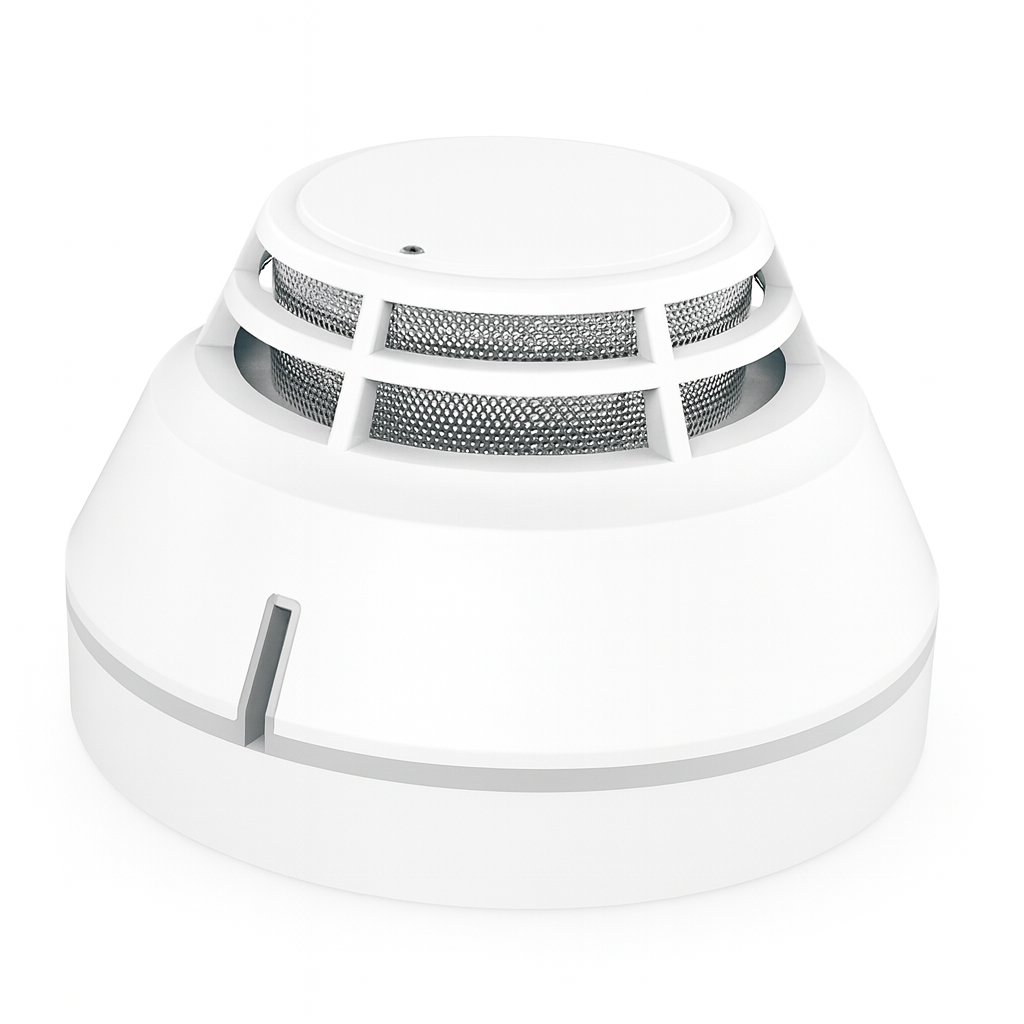

The Anwetech AT-S101 Addressable Photoelectric Smoke Detector is a high-sensitivity fire detector designed for use with compatible addressable fire alarm control panels.
Equipped with an advanced microprocessor, it continuously samples ambient air and analyzes smoke concentration in real-time. The data is transmitted via a two-wire communication bus, ensuring efficient integration and accurate monitoring.
The AT-M101 can store and process the latest historical detection data, supporting intelligent curve tracing and reliable decision-making for early warning fire protection.
It also supports soft addressing and in-situ address rewriting, which simplifies installation, configuration, and maintenance.
During operation, the red LED indicator flashes periodically to indicate polling communication and stays illuminated in the event of an alarm.
This smoke detector is suitable for commercial buildings, hotels, offices, computer rooms, libraries, and archives—locations where smoke presence indicates fire, but where dust or vapor levels are normally low.
It is not recommended for environments with high dust, oil mist, or condensation.
Key Features
LPCB & CPR certified for global compliance
Two-wire addressable loop design
Built-in microprocessor for real-time smoke data analysis
Soft addressing and reprogramming supported
Red LED indicator flashes during polling and lights continuously in alarm mode
Stable performance with low power consumption
Easy installation and maintenance
Applications
Addressable fire alarm systems
Commercial complexes and hotels
Computer rooms and data centers
Offices, schools, and libraries
Industrial facilities and public buildings
