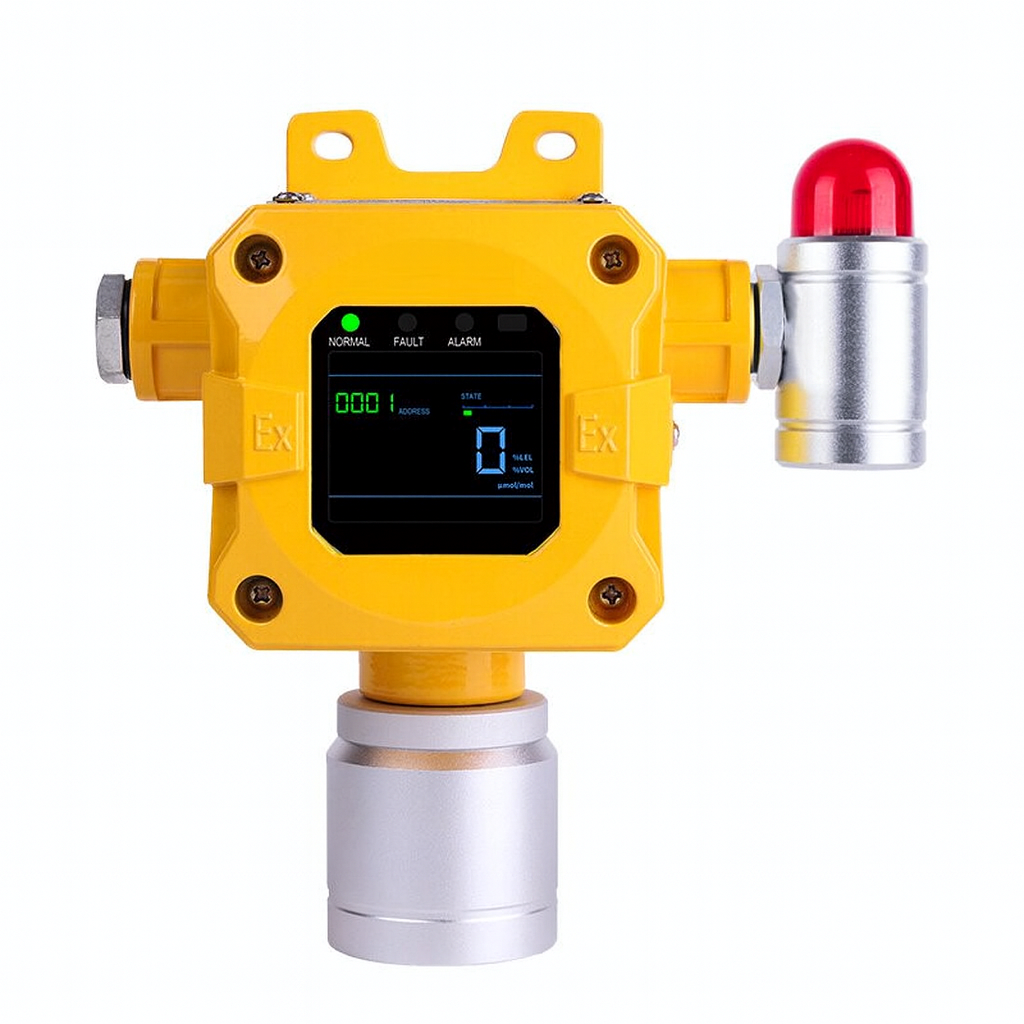

AT-EG01 CO Gas Detector is designed for fixed carbon monoxide gas monitoring applications. According to the product manual, the detector can be configured with a corresponding sensor module based on the selected target gas. Target gas, detection range and alarm setpoints are specified on the product nameplate.
The detector provides real-time gas concentration display and alarm status indication. It supports 4-20mA analog output, RS485 Modbus RTU communication and passive relay output for connection to gas alarm control panels, PLC systems or external alarm devices.
With die-cast aluminum housing, Ex d IIC T6 explosion-proof rating, IP66 protection and DC24V power supply, AT-EG01 CO Gas Detector is suitable for industrial carbon monoxide monitoring and gas safety system integration.
Real-time CO gas concentration monitoring
Current alarm status indication
High-resolution color screen with menu interface
Target gas, detection range and alarm setpoints specified on product nameplate
Sensor module configured according to CO gas application
DC24V power supply
4-20mA analog output
RS485 Modbus RTU communication
Passive relay contact output, max. 250VAC, 2A
Two-level alarm output
Standard or pulse relay output mode
Multi-point calibration function
Modular design for easier wiring and maintenance
Configuration backup and one-button factory reset
Die-cast aluminum housing
Explosion-proof rating: Ex d IIC T6
Ingress protection: IP66
ATEX certificate available, user-confirmed
Not specified in the source file.
| Item | Specification |
|---|---|
| Model | AT-EG01 |
| Product Type | CO Gas Detector |
| Target Gas | Carbon Monoxide / CO, as specified on product nameplate |
| Detection Range | As specified on product nameplate |
| Alarm Setpoints | As specified on product nameplate |
| Detection Principle | Catalytic Combustion / Electrochemical / Infrared / Semiconductor / Photoionization PID, according to gas configuration |
| Power Supply | DC 24V |
| Housing Material | Die-cast aluminum |
| Conduit Connection | M20 × 1.5 internal thread |
| Explosion-Proof Rating | Ex d IIC T6 |
| ATEX Certificate | Available, user-confirmed |
| Ingress Protection | IP66 |
| Dimensions | 185 mm × 143 mm × 82 mm |
| Output Signal | 4-20mA analog output, RS485 Modbus RTU, passive relay contact |
| Relay Contact Capacity | Max. 250VAC, 2A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 10% to 93% RH, non-condensing |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Installation Environment | Area free from significant impact, vibration and corrosive substances |
| Weight | ≤ 1.5 kg |
| Sensor Life | Typically 2–3 years in clean air |
Not specified in the source file.
Detection range, alarm setpoints and CO sensor configuration should be confirmed according to the product nameplate and project requirement.
4-20mA 3-wire connection: 24V+, 24V-, Signal
RS485 4-wire connection: 24V+, 24V-, A+, B-
Communication settings: 9600 / 4800 baud, 8 data bits, no parity, 1 stop bit, Modbus RTU protocol
Relay output: passive relay contact, max. 250VAC, 2A
Relay output mode can be configured as standard or pulse mode.
The detector must be installed where gas leakage or gas accumulation is likely to occur.
The optimal mounting position should be determined according to the density of the target gas relative to air and the actual site risk. The sensor element should face downward.
General installation notes:
Avoid strong impact, vibration and strong electromagnetic interference.
Ensure easy access for maintenance and calibration.
Keep a minimum 0.5 m clearance from surrounding pipes and equipment.
Route the cable through the cable gland.
A sealing operation with 2 cm of epoxy resin potting compound is required at the wiring port.
Do not open the cover when energized.
Use proper grounding.
Boiler rooms
Generator rooms
Combustion equipment areas
Industrial plant safety monitoring
Gas pipeline areas
Gas control panel systems
PLC monitoring systems
Factory gas safety systems
Hazardous industrial areas
