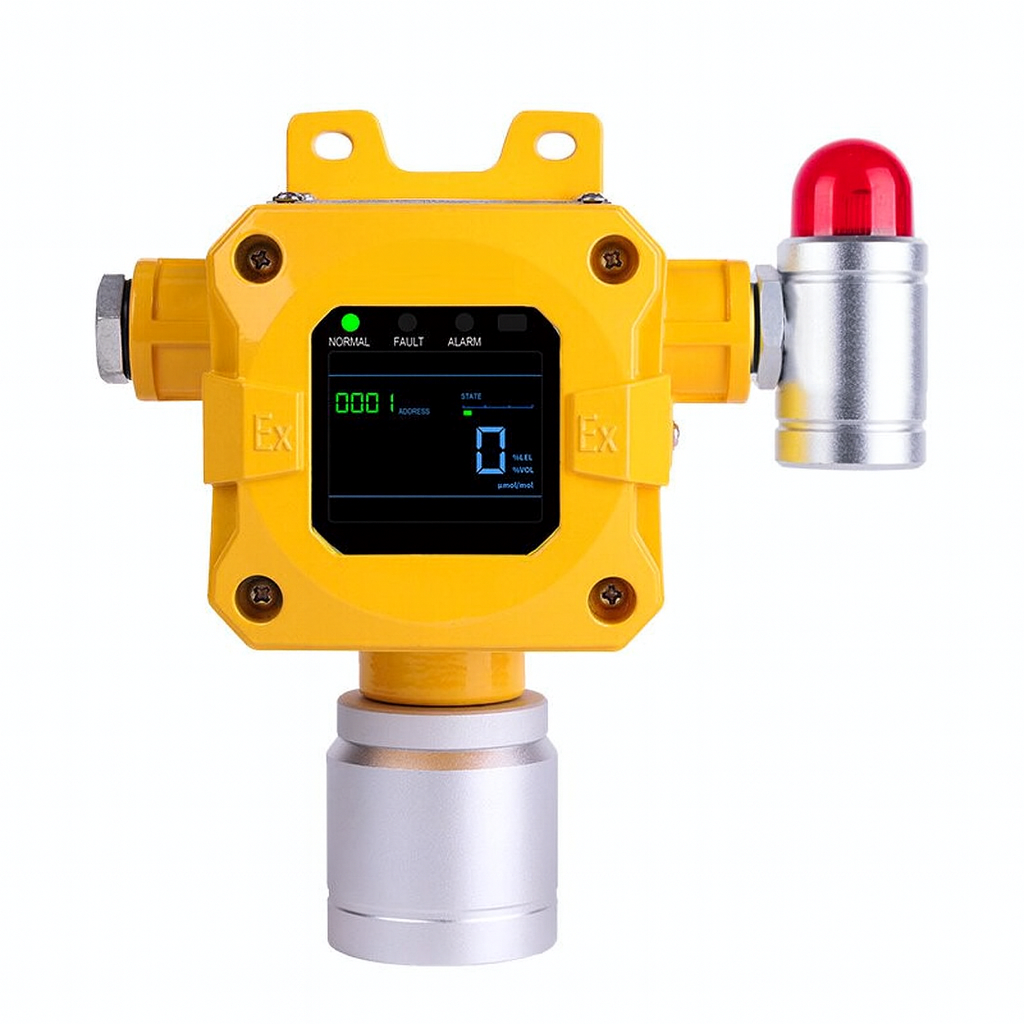

AT-EG01 Hydrogen Gas Detector is designed for fixed hydrogen gas monitoring applications. According to the product manual, the detector is configured with the corresponding sensor module based on the target gas. The target gas, detection range and alarm setpoints are specified on the product nameplate.
The detector provides real-time concentration display and alarm status indication. It supports 4-20mA analog signal output, RS485 digital communication using Modbus RTU protocol and passive relay contact output for alarm or control system integration.
With die-cast aluminum housing, Ex d IIC T6 explosion-proof rating, IP66 ingress protection and DC24V industrial power supply, AT-EG01 Hydrogen Gas Detector is suitable for fixed industrial hydrogen leakage monitoring and hazardous area gas detection applications.
Real-time hydrogen gas concentration monitoring
Alarm status display
High-resolution color screen with menu interface
Target gas, detection range and alarm setpoints specified on product nameplate
Sensor module configured according to hydrogen gas application
DC24V power supply
4-20mA analog output
RS485 Modbus RTU communication
Passive relay contact output, max. 250VAC, 2A
Two-level alarm output
Standard or pulse relay output mode
Multi-point calibration function
Modular design for easier wiring and maintenance
Configuration backup and one-button factory reset
Die-cast aluminum housing
Explosion-proof rating: Ex d IIC T6
Ingress protection: IP66
ATEX certificate available, user-confirmed
Not specified in the source file.
| Item | Specification |
|---|---|
| Model | AT-EG01 |
| Product Type | Hydrogen Gas Detector |
| Target Gas | Hydrogen / H2, as specified on product nameplate |
| Detection Range | As specified on product nameplate |
| Alarm Setpoints | As specified on product nameplate |
| Detection Principle | Catalytic Combustion / Electrochemical / Infrared / Semiconductor / Photoionization PID, according to gas configuration |
| Power Supply | DC 24V |
| Housing Material | Die-cast aluminum |
| Conduit Connection | M20 × 1.5 internal thread |
| Explosion-Proof Rating | Ex d IIC T6 |
| ATEX Certificate | Available, user-confirmed |
| Ingress Protection | IP66 |
| Dimensions | 185 mm × 143 mm × 82 mm |
| Output Signal | 4-20mA analog output, RS485 Modbus RTU, passive relay contact |
| Relay Contact Capacity | Max. 250VAC, 2A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 10% to 93% RH, non-condensing |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Installation Environment | Area free from significant impact, vibration and corrosive substances |
| Weight | ≤ 1.5 kg |
| Sensor Life | Typically 2–3 years in clean air |
Not specified in the source file.
Detection range, alarm setpoints and hydrogen sensor configuration should be confirmed according to the product nameplate and project requirement.
4-20mA 3-wire connection: 24V+, 24V-, Signal
RS485 4-wire connection: 24V+, 24V-, A+, B-
Communication settings: 9600 / 4800 baud, 8 data bits, no parity, 1 stop bit, Modbus RTU protocol
Relay output: passive relay contact, max. 250VAC, 2A
Low alarm and high alarm output modes are available.
The detector must be installed where gas leakage is likely to occur.
For gases lighter than air, the detector should be installed near the potential leakage source, at a height of 0.5 to 2 meters above the leakage source. The sensor element should face downward.
General installation notes:
Avoid strong impact and vibration.
Avoid strong electromagnetic interference.
Ensure easy access for maintenance and calibration.
Keep a minimum 0.5 m clearance from surrounding pipes and equipment.
Route the cable through the cable gland.
A sealing operation with 2 cm of epoxy resin potting compound is required at the wiring port.
Do not open the cover when energized.
Use proper grounding.
Hydrogen gas storage areas
Hydrogen pipeline areas
Hydrogen valve stations
Battery charging rooms
Fuel cell areas
Industrial hydrogen applications
Gas alarm control panel systems
PLC gas monitoring systems
Hazardous industrial areas
Factory gas safety systems
