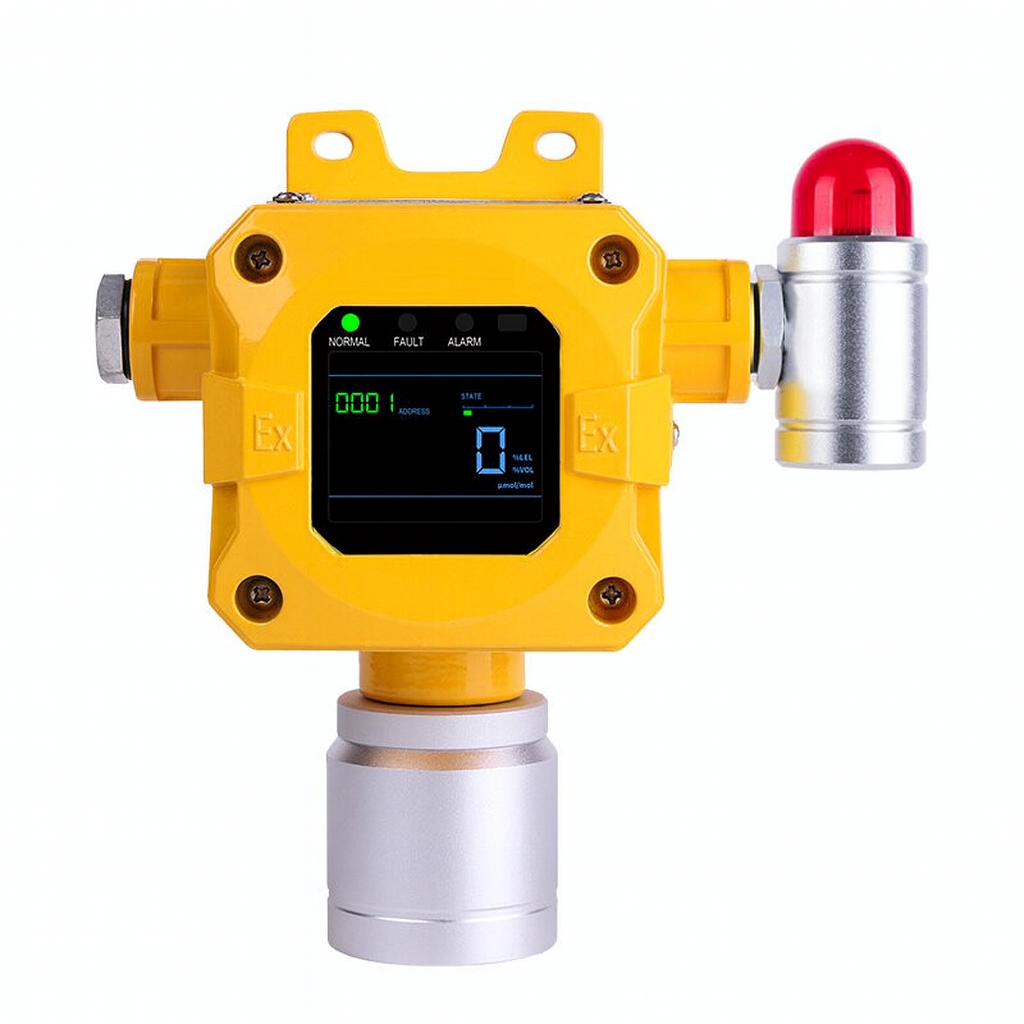

AT-EG01 LPG Gas Detector is designed for fixed installation in areas where LPG leakage may occur. According to the product manual, the AT-EG01 gas detector can be equipped with a corresponding sensor module according to the target gas, and the target gas, detection range and alarm setpoints are specified on the product nameplate.
The detector provides real-time gas concentration display and current alarm status indication. It supports 4-20mA analog output, RS485 digital communication with Modbus RTU protocol and passive relay contact output for alarm or system linkage.
With die-cast aluminum housing, Ex d IIC T6 explosion-proof rating, IP66 ingress protection and DC24V industrial power supply, AT-EG01 LPG Gas Detector is suitable for LPG leakage monitoring in gas storage areas, LPG cylinder rooms, gas pipeline areas and other industrial gas safety applications.
Real-time LPG gas concentration monitoring
Current alarm status indication
High-resolution color screen with menu interface
Target gas, detection range and alarm setpoints specified on product nameplate
Detection principle configured according to target gas and sensor module
DC24V industrial power supply
4-20mA analog signal output
RS485 Modbus RTU digital communication
Passive relay contact output, max. 250VAC, 2A
Two-level alarm output
Relay output mode: standard or pulse
Multi-point calibration function
Modular design for easier wiring and maintenance
Configuration backup and one-button factory reset
Die-cast aluminum housing
Explosion-proof rating: Ex d IIC T6
Ingress protection: IP66
ATEX certificate available, user-confirmed
Not specified in the source file.
| Item | Specification |
|---|---|
| Model | AT-EG01 |
| Product Type | LPG Gas Detector |
| Target Gas | LPG, as specified on product nameplate |
| Detection Range | As specified on product nameplate |
| Alarm Setpoints | As specified on product nameplate |
| Detection Principle | Catalytic Combustion / Electrochemical / Infrared / Semiconductor / Photoionization PID, according to gas configuration |
| Power Supply | DC 24V |
| Housing Material | Die-cast aluminum |
| Conduit Connection | M20 × 1.5 internal thread |
| Explosion-Proof Rating | Ex d IIC T6 |
| ATEX Certificate | Available, user-confirmed |
| Ingress Protection | IP66 |
| Dimensions | 185 mm × 143 mm × 82 mm |
| Output Signal | 4-20mA analog output, RS485 Modbus RTU, passive relay contact |
| Relay Contact Capacity | Max. 250VAC, 2A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 10% to 93% RH, non-condensing |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Installation Environment | Area free from significant impact, vibration and corrosive substances |
| Weight | ≤ 1.5 kg |
| Sensor Life | Typically 2–3 years in clean air |
Not specified in the source file.
Detection range, alarm setpoints and LPG sensor configuration should be confirmed according to the product nameplate and project requirement.
4-20mA 3-wire connection: 24V+, 24V-, Signal
RS485 4-wire connection: 24V+, 24V-, A+, B-
Communication settings: 9600 / 4800 baud, 8 data bits, no parity, 1 stop bit, Modbus RTU protocol
Relay output: passive relay contact, max. 250VAC, 2A
Relay output mode can be set as standard mode or pulse mode.
Standard mode: relay closes upon alarm and remains closed.
Pulse mode: relay closes upon alarm and opens after 3 seconds.
The detector must be installed where gas leakage is likely to occur.
For gases denser than air, the detector should be installed near the potential leakage source at a height of 0.3 to 0.6 meters above the ground or floor level, with the sensor element facing downward.
General installation notes:
Choose a location free from impact, vibration and strong electromagnetic interference.
Ensure easy access for maintenance and calibration.
Keep a minimum 0.5 m clearance from surrounding pipes and equipment.
Route the cable through the cable gland.
A sealing operation with 2 cm of epoxy resin potting compound is required at the wiring port.
Do not open the cover when energized.
Use proper grounding through the internal and external grounding bolts.
LPG cylinder rooms
LPG gas storage areas
Gas pipeline areas
Gas valve stations
Boiler rooms
Generator rooms
Industrial gas supply systems
Factory gas safety systems
Gas alarm control panel systems
Hazardous industrial areas
