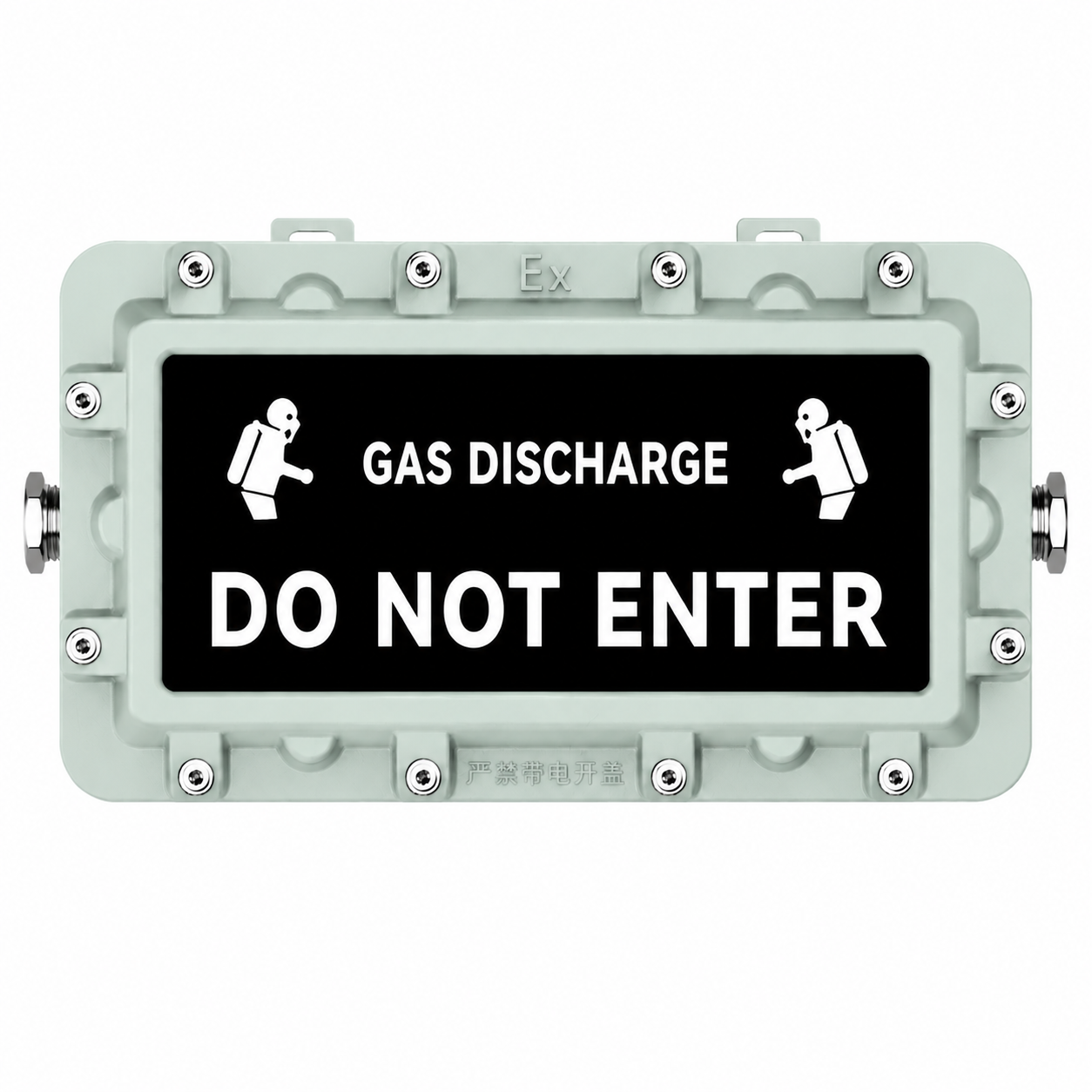

EGS01 Explosion-Proof Gas Discharge Warning Sign

No.AT-EGS01
The ANWETECH AT-EGS01 is an explosion-proof illuminated warning sign for gas fire suppression systems. Installed at the entrance to a gas-protected area, it provides a flashing red visual warning when extinguishing agent discharge is activated, helping prevent personnel from entering the protected zone.
  • EGS01 Explosion-Proof Gas Discharge Warning Sign

Description

Product Overview

The AT-EGS01 Explosion-Proof Gas Discharge Warning Sign is designed to indicate the activation or discharge of a gaseous fire extinguishing system.

It is normally installed above or beside the entrance to the protected room. When the warning sign receives a DC24V activation signal from the gas extinguishing control panel, its high-brightness LED display flashes red to warn personnel not to enter the protected area.

The product uses a flameproof enclosure with a tempered-glass display panel and a sealed structural design. It is intended for industrial locations containing explosive gases, combustible dust, moisture or corrosive gases.

Recommended English display wording:

GAS PROTECTED AREA
DO NOT ENTER WHILE GAS IS DISCHARGING

The source information confirms DC24V operation, flashing red LED indication, two-wire non-polarized wiring and IP66 enclosure protection.

Key Features

  • Explosion-proof warning sign for gaseous fire suppression systems
  • Provides a clear visual warning during extinguishing agent discharge
  • Suitable for installation at protected-room entrances
  • DC24V operating voltage
  • Two-wire non-polarized connection
  • Non-addressable operation
  • High-brightness LED light source
  • Flashing red visual indication
  • Surface brightness from 50 to 300 cd/m²
  • Approximately 90 flashes per minute
  • IP66 enclosure protection
  • Tempered-glass display panel
  • Die-cast metal enclosure
  • Ageing-resistant silicone rubber sealing gasket
  • Suitable for wall-mounted installation
  • Supports cable or steel-conduit wiring
  • Low power consumption
  • Long LED service life
  • Suitable for explosive gas and combustible dust environments
  • Multiple display legend options are shown in the source documentation

Technical Specifications

Parameter Specification
Product Model AT-EGS01
Product Name Explosion-Proof Gas Discharge Warning Sign
Rated Power ≤5 W
Input Voltage DC24V
Device Type Non-addressable
Wiring System Two-wire, non-polarized
Light Source LED-SMD2835
Light Colour Red
Indication Mode Flashing
Flashing Frequency Approximately 90 flashes/min
Surface Brightness 50–300 cd/m²
Explosion-Proof Marking Ex db IIB T6 Gb; Ex tb IIIB T80°C Db
Referenced Standards GB/T 3836.1-2021; GB/T 3836.2-2021; GB/T 3836.31-2021
Hazardous Gas Environment Zone 1 and Zone 2
Applicable Gas Groups IIA and IIB
Combustible Dust Environment Zone 21 and Zone 22
Temperature Group T1–T6
Ingress Protection IP66
Corrosion Protection WF1 / WF2, as listed in the source
Cable Entry Thread M25 × 1.5
Suitable Cable Diameter Ø8–14 mm
Operating Temperature -25°C to +45°C
Display Panel Material Tempered glass
Glass Thickness ≥8 mm
Product Dimensions 355 × 185 × 64 mm
Net Weight Approximately 3.4 kg
Gross Weight Approximately 3.8 kg
Installation Method Wall-mounted

Dimensional note: The technical parameter table specifies a product depth of 64 mm, while the side-view dimensional drawing indicates approximately 67 mm. Final mounting dimensions should be confirmed before preparing conduit positions or mounting holes.

Detection Distance / Performance Data

The AT-EGS01 is a visual warning device. It does not independently detect smoke, heat, flame, combustible gas or extinguishing agent discharge.

Its confirmed indication performance includes:

Performance Item Specification
Surface Brightness 50–300 cd/m²
Light Source LED-SMD2835
Light Colour Red
Indication Mode Flashing
Flashing Frequency Approximately 90 flashes/min

A specific visual recognition distance is not stated in the source file. Actual visibility depends on the installation height, ambient lighting, viewing angle, display wording and site conditions.

Wiring / Signal Output Description

The AT-EGS01 operates from an external DC24V activation supply and uses a two-wire non-polarized connection.

Typical system connection:

Gas Extinguishing Control Panel → DC24V Release Warning Output → AT-EGS01 Gas Discharge Warning Sign

When the gas extinguishing control panel provides the DC24V activation signal, the LED display flashes red to warn that the gaseous extinguishing system has been activated or is discharging.

Confirmed wiring information:

  • DC24V power input
  • Two-wire connection
  • No polarity requirement
  • Non-addressable device
  • M25 × 1.5 cable entry
  • Suitable cable outside diameter: Ø8–14 mm
  • Internal wiring terminal
  • Internal earth terminal
  • Suitable for cable or steel-conduit installation

No relay output, communication interface, addressable loop connection or built-in detection function is specified in the source file.

Before connection, confirm that the control panel output voltage and available current are suitable for the warning sign’s rated power.

Installation / Mounting Notes

The AT-EGS01 is designed for wall-mounted installation at the entrance or exit of a gas fire suppression zone.

Recommended installation positions include:

  • Above the protected-room entrance
  • Beside the access door
  • Outside the extinguishing agent discharge zone
  • At a clearly visible position before personnel enter the protected area
  • Along the evacuation route without obstructing access

Installation requirements:

  1. Installation must be performed by qualified personnel.
  2. Confirm that the product nameplate data matches the actual site conditions.
  3. Verify that the supply voltage is DC24V.
  4. Check that the cable-entry sealing ring, washer and compression components are complete.
  5. Ensure that the protective earth connection is secure and reliable.
  6. Apply suitable anti-loosening measures to all fasteners.
  7. Do not open the explosion-proof enclosure while the unit is energized.
  8. Protect the flameproof joint surfaces from impact, scratches and contamination.
  9. Tighten the cable-entry sealing components to prevent water or dust ingress.
  10. Maintain the enclosure sealing performance after installation or maintenance.
  11. Use suitable cable glands, conduit fittings and junction boxes according to the project design.
  12. Make sure that the warning message remains unobstructed and clearly visible.

The installation diagram in the source material shows a wall-mounting bracket, M25 × 1.5 cable-entry assembly, internal terminal, internal earth terminal, galvanized conduit, conduit clamps and an external explosion-proof junction box arrangement.

Application Areas

The AT-EGS01 is suitable for entrances to gaseous fire suppression zones in:

  • Electrical rooms
  • Server rooms
  • Data centres
  • UPS rooms
  • Battery rooms
  • Control rooms
  • Telecommunications rooms
  • Generator rooms
  • Transformer areas
  • Machinery spaces
  • Petrochemical facilities
  • Oil and gas facilities
  • Chemical processing plants
  • Natural gas facilities
  • Coal processing plants
  • Offshore platforms
  • Marine vessels
  • Railway facilities
  • Metallurgical plants
  • Pharmaceutical factories
  • Electronics manufacturing facilities
  • Hazardous gas Zone 1 and Zone 2
  • Combustible dust Zone 21 and Zone 22
  • Moist, dusty or corrosive industrial environments

The product may be used with gaseous fire suppression systems where a DC24V discharge-warning signal is available. Compatibility with the selected control panel must be confirmed before installation.
