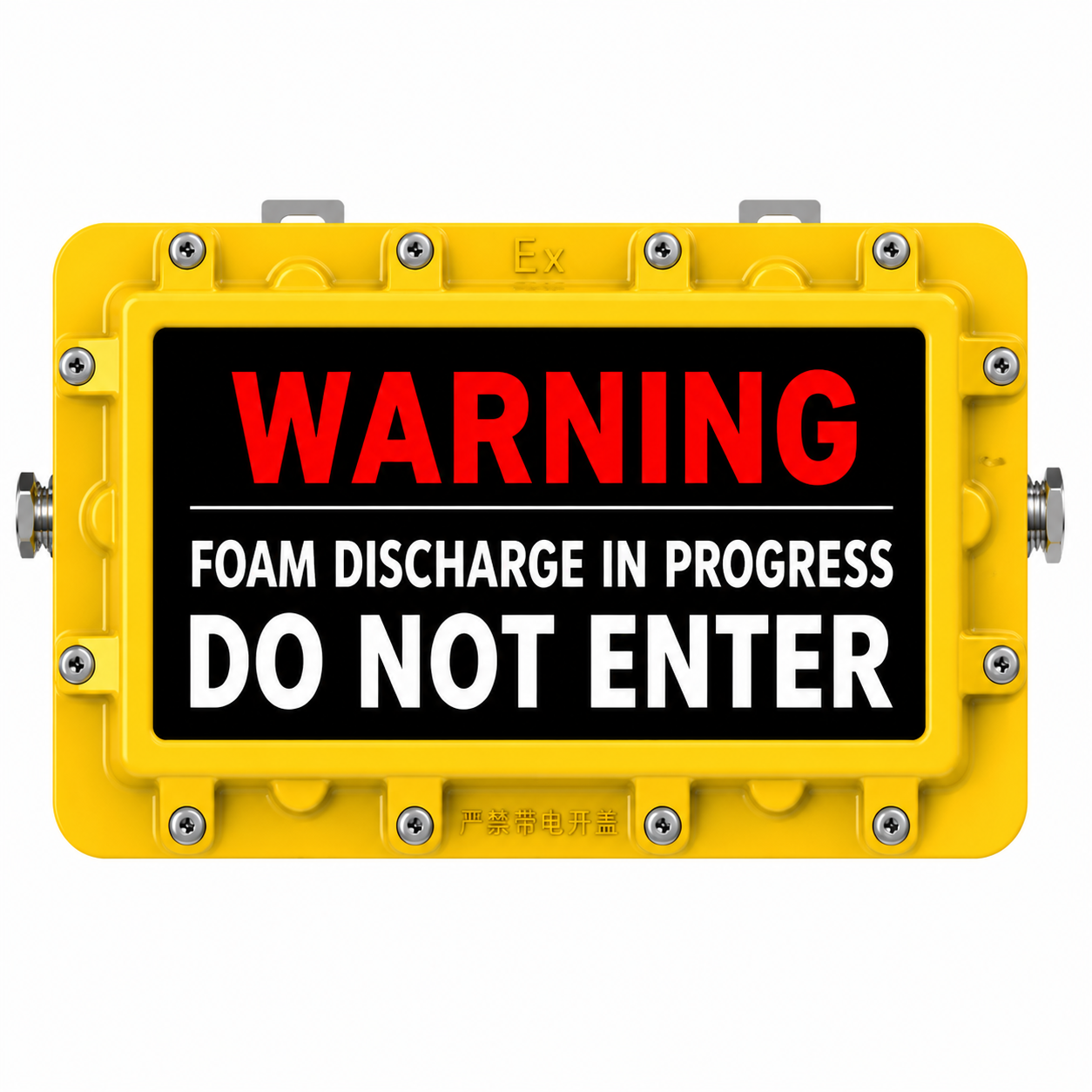

EGS02 Foam Discharge Warning Sign

No.AT-EGS02
The ANWETECH AT-EGS02 is an explosion-proof illuminated warning sign designed for installation at entrances to foam fire suppression zones. When the foam extinguishing system is activated, the sign provides a flashing red visual warning to prevent personnel from entering the protected area.
  • EGS02 Foam Discharge Warning Sign

Description

Product Overview

The AT-EGS02 Explosion-Proof Foam Discharge Warning Sign provides a clear visual warning during the activation or discharge of a foam fire suppression system.

It is normally installed above or beside the entrance to a foam-protected room or hazardous industrial area. When a DC24V activation signal is received from the fire suppression control system, the high-brightness LED display flashes red to warn personnel that foam discharge is in progress.

The product uses a flameproof enclosure, a tempered-glass display panel and a sealed structural design. It is suitable for hazardous areas containing explosive gases, combustible dust, moisture or corrosive gases.

Recommended English display wording:

WARNING
FOAM DISCHARGE IN PROGRESS
DO NOT ENTER

The source information confirms DC24V operation, flashing red LED indication, two-wire non-polarized wiring and IP66 enclosure protection.

Key Features

  • Explosion-proof warning sign for foam fire suppression systems
  • Provides a clear warning during foam discharge
  • Suitable for installation at protected-area entrances
  • DC24V operating voltage
  • Two-wire non-polarized connection
  • Non-addressable device
  • Flashing red LED visual indication
  • Surface brightness from 50 to 300 cd/m²
  • Approximately 90 flashes per minute
  • IP66 ingress protection
  • Tempered-glass display panel
  • Die-cast metal enclosure
  • Ageing-resistant silicone rubber sealing gasket
  • Suitable for wall-mounted installation
  • Supports steel conduit or cable wiring
  • Low power consumption
  • Long LED operating life
  • Suitable for hazardous gas and combustible dust environments
  • English or project-specific warning text can be supplied after confirmation

Technical Specifications

Parameter Specification
Product Model AT-EGS02
Product Name Explosion-Proof Foam Discharge Warning Sign
Rated Power ≤5 W
Input Voltage DC24V
Device Type Non-addressable
Wiring System Two-wire, non-polarized
Light Source LED-SMD2835
Light Colour Red
Operating Mode Flashing illumination
Flashing Frequency Approximately 90 flashes/min
Surface Brightness 50–300 cd/m²
Explosion-Proof Marking Ex db IIB T6 Gb; Ex tb IIIB T80°C Db
Referenced Standards GB/T 3836.1-2021; GB/T 3836.2-2021; GB/T 3836.31-2021
Hazardous Gas Environment Zone 1 and Zone 2
Gas Group IIA and IIB
Combustible Dust Environment Zone 21 and Zone 22
Temperature Group T1–T6
Ingress Protection IP66
Corrosion Protection WF1 / WF2, as stated in the source information
Cable Entry Thread M25 × 1.5
Suitable Cable Diameter Ø8–14 mm
Operating Temperature -25°C to +45°C
Display Panel Material Tempered glass
Glass Thickness ≥8 mm
Product Dimensions 355 × 185 × 64 mm
Net Weight Approximately 3.4 kg
Gross Weight Approximately 3.8 kg
Installation Method Wall-mounted

Dimensional note: The technical specification table states a product depth of 64 mm, while the side-view dimensional drawing shows approximately 67 mm. The final installation dimensions should be confirmed before preparing mounting holes or conduit positions.

Detection Distance / Performance Data

The AT-EGS02 is a visual warning device. It does not detect fire, smoke, heat, flame, gas or foam discharge independently.

Its confirmed visual performance data includes:

Performance Item Specification
Surface Brightness 50–300 cd/m²
Light Colour Red
Indication Mode Flashing
Flashing Frequency Approximately 90 flashes/min
Light Source LED-SMD2835

A specific visual recognition distance is not stated in the source file. Actual visibility depends on installation height, ambient lighting, viewing angle, warning text size and site conditions.

Wiring / Signal Output Description

The AT-EGS02 operates from a DC24V activation supply and uses a two-wire non-polarized connection.

Typical connection:

Foam Fire Suppression Control Panel → DC24V Warning Output → AT-EGS02 Foam Discharge Warning Sign

When the suppression control panel supplies DC24V to the warning sign, the LED display flashes to indicate that the foam extinguishing system is operating or discharging.

Confirmed wiring information:

  • DC24V input
  • Two-wire connection
  • No polarity requirement
  • Non-addressable operation
  • M25 × 1.5 cable entry
  • Suitable cable outside diameter: Ø8–14 mm
  • Steel conduit or suitable industrial cable wiring
  • Internal wiring terminal
  • Internal earth terminal

A relay output, addressable communication interface or network connection is not specified in the source file.

Before connection, confirm that the control panel output voltage and available current are suitable for the warning sign’s rated power.

Installation / Mounting Notes

The AT-EGS02 is designed for wall-mounted installation at the entrance or exit of a foam fire suppression zone.

Recommended installation positions include:

  • Above the entrance to the protected room
  • Beside the access door
  • Outside the foam discharge area
  • At a location clearly visible before personnel enter the protected zone
  • Near an evacuation route without obstructing access

Installation requirements:

  1. Installation must be performed by qualified personnel.
  2. Check that the nameplate data matches the actual site conditions.
  3. Confirm that the operating voltage is DC24V.
  4. Inspect the cable-entry sealing ring, washer and compression components before installation.
  5. Ensure that the protective earth connection is secure.
  6. Apply anti-loosening measures to all fasteners.
  7. Do not open the explosion-proof enclosure while the unit is energized.
  8. Protect the flameproof joint surfaces from impact, scratches and contamination.
  9. Tighten the cable-entry sealing components to prevent water or dust ingress.
  10. Maintain the enclosure sealing performance after installation or servicing.
  11. Use suitable certified cable glands, conduit fittings and junction boxes according to the project requirements.
  12. Ensure that the warning text remains clearly visible after installation.

The source installation diagram shows a wall-mounting bracket, M25 × 1.5 cable-entry assembly, internal terminal, internal earth terminal, galvanized conduit, U-shaped conduit clamp and an external explosion-proof junction box arrangement.

Application Areas

The AT-EGS02 can be used at entrances to foam fire suppression zones in:

  • Oil storage facilities
  • Fuel storage rooms
  • Oil depots
  • Petrochemical plants
  • Chemical processing plants
  • Refineries
  • Loading and unloading areas
  • Pump rooms
  • Generator rooms
  • Transformer areas
  • Machinery spaces
  • Aircraft hangars
  • Airport facilities
  • Marine vessels
  • Offshore platforms
  • Coal processing facilities
  • Metallurgical plants
  • Industrial production areas
  • Fire pump and foam equipment rooms
  • Hazardous gas Zone 1 and Zone 2
  • Combustible dust Zone 21 and Zone 22
  • Moist, dusty or corrosive industrial environments

The actual application should be selected according to the foam extinguishing system design, hazardous-area classification and local project requirements.
