Overview

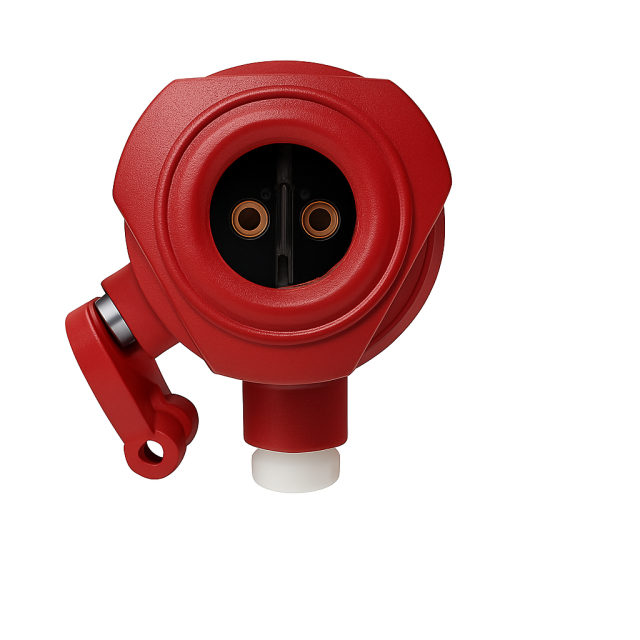

The FD1-UVIR3 Explosion-Proof Flame Detector is a premium triple-spectrum flame detector combining ultraviolet (UV) and triple-infrared (IR3) sensing technologies.
It offers outstanding flame recognition accuracy, rapid response, and excellent resistance to false alarms caused by sunlight, welding, hot surfaces, or electrical arcs.
Designed for hazardous industrial environments, this detector is equipped with a built-in 32-bit microprocessor and advanced flame recognition algorithm, ensuring intelligent analysis of flame signals and real-time status monitoring.
Constructed from corrosion-resistant aluminum alloy with IP66 protection and Ex db IIC T6 Gb / Ex tb IIIC T80°C Db explosion-proof certification, the FD1-UVIR3 ensures long-term reliability under extreme conditions.
It is ideal for oil & gas plants, petrochemical sites, offshore platforms, and power generation facilities.
Triple-Spectrum Detection (UV + IR3): Combines ultraviolet and three infrared sensors for superior flame identification.
High Immunity to False Alarms: Effectively filters out sunlight, welding arcs, and hot object interference.
Fast Flame Response: Typical detection time ≤ 5 seconds.
Wide Field of View: 120° coverage for broad-area monitoring.
Self-Diagnostic Function: Includes Optical Integrity (OI) checking and fault reporting.
Explosion-Proof Housing: Certified Ex db IIC T6 Gb / Ex tb IIIC T80°C Db.
Durable Construction: IP66-rated aluminum housing, corrosion-resistant coating.
Dual Relay Outputs: For alarm and fault signals.
Lightweight Design: Compact size for easy installation and maintenance.
| Parameter | Specification |
|---|---|
| Detection Type | UV + Triple IR (IR3) |
| Spectral Range | UV: 185–260 nm; IR: 4.3–5.0 µm |
| Field of View | 120° |
| Response Time | ≤ 5 s |
| Optical Integrity (Self-Test) | Supported |
| Operating Voltage | 24 VDC (18–30 VDC) |
| Output Signal | Two Relay Outputs (Alarm / Fault) |
| Contact Rating | 1 A @ 30 VDC |
| Operating Temperature | –40 °C ~ +70 °C |
| Humidity | 0–96% RH (non-condensing) |
| Housing Material | Cast Aluminum Alloy |
| Protection Rating | IP66 |
| Explosion Protection | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
| Weight | 0.7 kg |
| Dimensions | 120 × 95 × 85 mm |
| Cable Entry | 1 × NPT 3/4″ |
Oil & Gas Facilities · Petrochemical Plants · Offshore Platforms · Power Stations · Industrial Warehouses · Chemical Storage Areas
