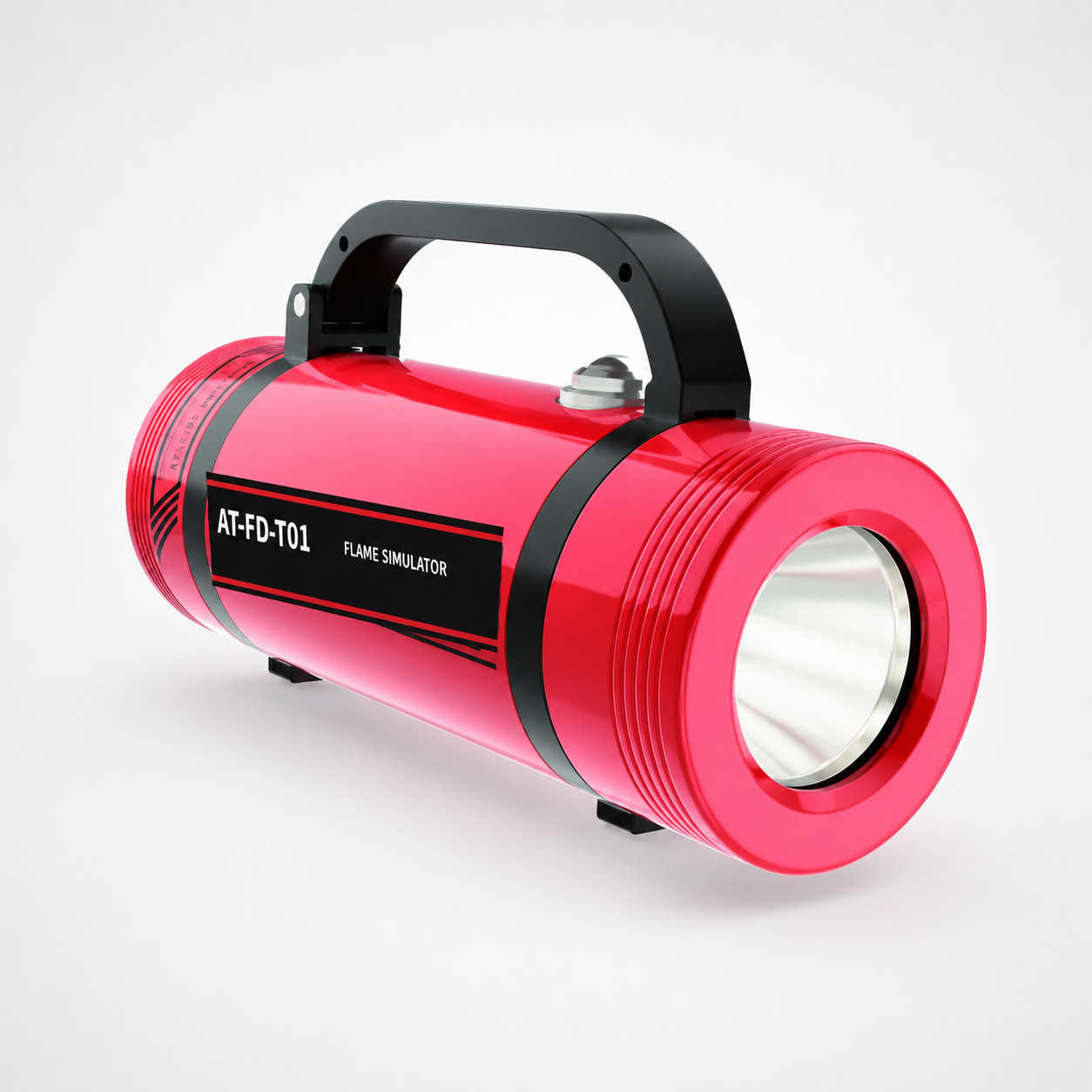

The ANWETECH AT-FD-T01 is a portable explosion-proof flame simulator designed for functional testing of UV, IR and UV/IR flame detectors.
It simultaneously emits ultraviolet and infrared radiation to simulate a real flame without producing an open flame, making it suitable for detector commissioning, inspection and routine maintenance in hazardous environments.
The AT-FD-T01 Explosion-Proof UV/IR Flame Simulator is a photoelectric testing device developed for safe and convenient flame detector testing.
During operation, the device generates both ultraviolet and infrared radiation to simulate the optical characteristics of a real flame. It allows technicians to check whether a compatible flame detector can detect the simulated flame signal and initiate an alarm response.
Unlike conventional testing methods that require a naked flame, the AT-FD-T01 performs detector testing without creating an actual fire. This makes it particularly suitable for industrial and hazardous locations where the use of an open flame is restricted or prohibited.
The unit features an explosion-proof enclosure, IP65 protection, rechargeable operation and a maximum recommended test distance of up to 8 metres.
The enclosure is designed for use in hazardous environments and carries an explosion-protection marking suitable for industrial flame detector testing applications.
The simulator simultaneously produces ultraviolet and infrared radiation to simulate the optical energy emitted by a real flame.
The detector can be tested without using an actual flame, improving safety during commissioning and routine maintenance.
The flame simulator supports a recommended operating distance of up to 8 metres under suitable testing conditions.
The compact enclosure and integrated carrying handle make the unit convenient for field inspection and maintenance work.
The device supports rechargeable operation, with approximately 60 minutes of continuous working time after charging.
The enclosure provides protection against dust and water ingress for industrial field use.
| Parameter | Specification |
|---|---|
| Product Name | Explosion-Proof UV/IR Flame Simulator |
| Model | AT-FD-T01 |
| Optical Radiation | Ultraviolet and infrared radiation |
| Recommended Test Distance | ≤8 m |
| Explosion-Proof Marking | Ex dia IIC T4 Gb / Ex tD iD A21 IP65 T135°C |
| Ingress Protection | IP65 |
| Testing Method | Optical flame simulation without an open flame |
| Dimensions | 210 × 117 × 79 mm |
| Parameter | Specification |
|---|---|
| Operating Voltage | 12 V DC |
| Operating Current | ≤3 A |
| Continuous Working Time | Approximately 60 minutes |
| Charging Voltage | 16.8 V DC |
| Charging Current | 1 A |
| Charging Time | Approximately 4 hours |
| Parameter | Specification |
|---|---|
| Operating Temperature | −20°C to +60°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Charging and Storage Temperature | 0°C to +45°C |
| Parameter | Specification |
|---|---|
| Enclosure Material | Aluminium alloy |
| Product Weight | Approximately 2.0 kg |
| Product Dimensions | 210 × 117 × 79 mm |
| Carrying Method | Integrated portable handle |
The AT-FD-T01 is a portable flame detector testing device and does not require connection to the fire alarm loop during normal testing.
| Item | Description |
|---|---|
| Operating Power | Rechargeable DC power system |
| Operating Voltage | 12 V DC |
| Charging Input | 16.8 V DC, 1 A |
| Signal Output | Optical ultraviolet and infrared radiation |
| Relay Output | Not applicable |
| Fire Alarm Loop Connection | Not required |
During testing, the flame detector remains connected to its normal fire alarm or control system. The AT-FD-T01 is aimed toward the detector to simulate a flame signal and verify the detector’s alarm response.
The AT-FD-T01 is suitable for:
Actual response time may vary depending on detector type, sensitivity setting, viewing angle, test distance and programmed alarm algorithm.
