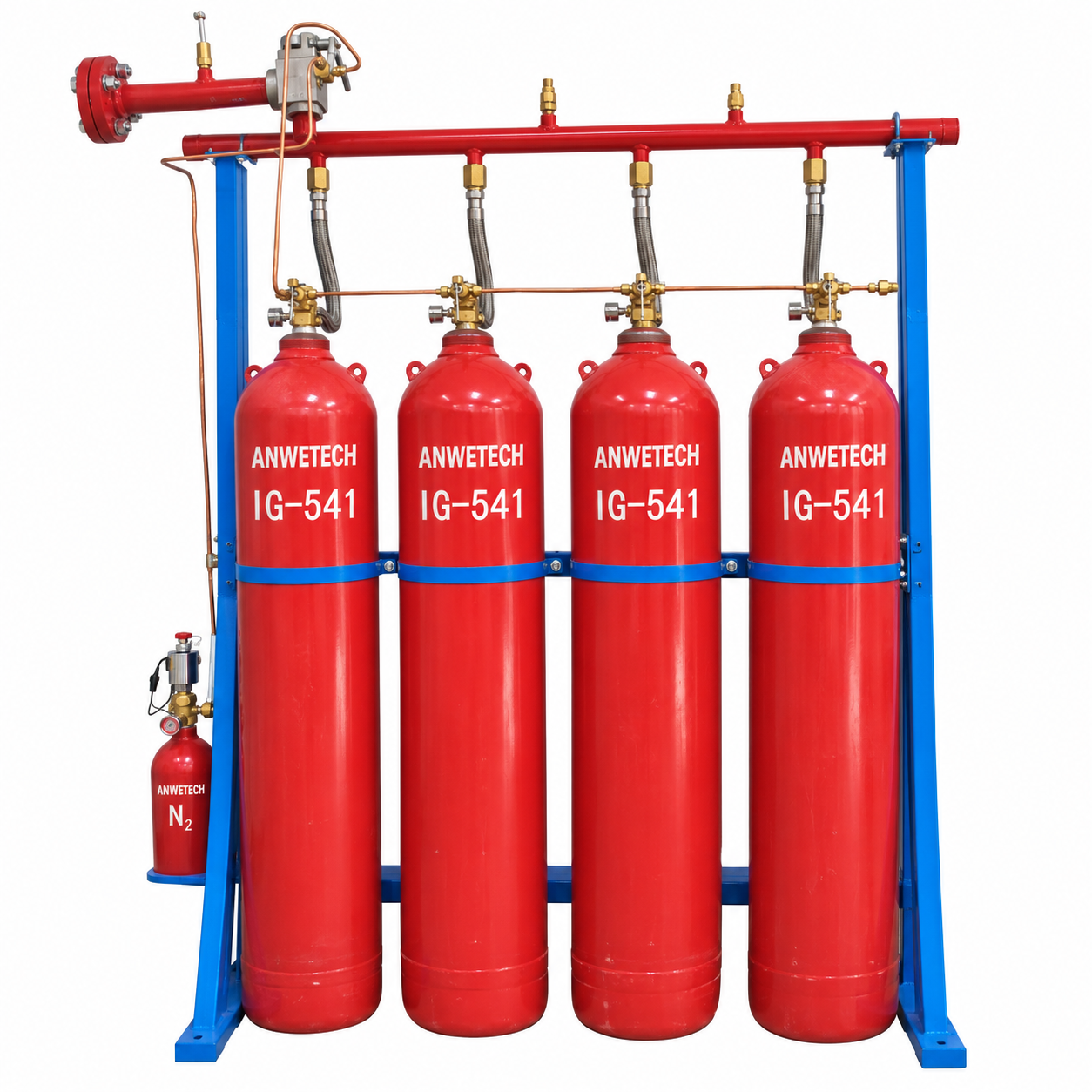

IG541 30 MPa Mixture Gas Fire Suppression System

The ANWETECH IG541 30 MPa Mixture Gas Fire Suppression System is a total flooding gaseous fire suppression solution using a mixture of nitrogen, argon and carbon dioxide.

The extinguishing agent is colourless, odourless, non-toxic and non-conductive. The system is designed for enclosed protected areas such as computer rooms, data rooms, telecommunication rooms, transformer rooms, electrical switch rooms, generator rooms, control centres, archives and other industrial spaces.

The system supports electrical automatic, electrical manual and mechanical emergency starting modes, with 80 L and 140 L extinguishing-agent cylinder options.

  • IG541 30 MPa Mixture Gas Fire Suppression System

Description

Overview

IG541 extinguishing agent is a clean compressed gas consisting of:

  • Nitrogen (N₂): 52% ± 4%
  • Argon (Ar): 40% ± 4%
  • Carbon Dioxide (CO₂): 8% +1% / -0.0%

According to the manual, the agent is colourless, odourless, non-toxic and non-conductive. It does not impair visibility during discharge, does not produce corrosive decomposition products and has zero ozone depletion potential.

IG541 extinguishes fire mainly by reducing the oxygen concentration within the protected enclosure to a level that does not support combustion, generally below 15%.

The system is intended for total flooding protection of Class A surface fires, Class B flammable-liquid fires and energized electrical hazards in enclosed spaces.

The system may be configured as either a combined distribution system serving several protected areas or a unit independent system dedicated to one protected area. In a combined distribution system, only one protected zone is discharged at a time.

 Key Features

30 MPa Storage Pressure

The IG541 extinguishing-agent storage system operates at a nominal storage pressure of 30.0 MPa.

Maximum working pressure at +50°C is 36.6 MPa, while minimum working pressure at 0°C is 27 MPa.

Three Starting Modes

The system supports:

  • Electrical automatic start
  • Electrical manual start
  • Mechanical emergency start

Automatic Alarm and Linkage Control

In automatic mode, a fire signal can initiate audible and visual alarms, equipment linkage shutdown and the extinguishing release sequence.

The manual describes a preset 30-second delay before the release command is issued.

80 L and 140 L Cylinder Options

Two extinguishing-agent cylinder sizes are specified:

  • 80 L
  • 140 L

Combined or Independent Protection

The system can be arranged as:

  • Combined distribution system
  • Unit independent system

This allows the configuration to be selected according to the number of protected areas and project requirements.

Optional Configurations

Extinguishing Agent Cylinder Options

Model Volume Working Pressure Diameter Height Safety Relief Pressure
HMP80/30 80 L 30 MPa Φ267 mm 1860 ± 20 mm 46 ± 2.3 MPa
HMP140/30 140 L 30 MPa Φ356 mm 1825 ± 20 mm 46 ± 2.3 MPa

The corresponding filling weights at 300 bar are:

  • 80 L: 33.2 kg
  • 140 L: 58.2 kg

Driving Cylinder Options

Model Volume Filling Pressure at 20°C Diameter Height
QQP4/6 4 L 6 MPa Φ140 mm 360 mm
QQP7.5/6 7.5 L 6 MPa Φ140 mm 620 mm
QQP10/6 10 L 6 MPa Φ152 mm 700 mm
QQP20/6 20 L 6 MPa Φ170 mm 1165 mm

 Technical Specifications

Parameter Specification
Product Type IG541 Mixture Gas Fire Suppression System
Storage Pressure 30.0 MPa
Working Temperature 0°C to +50°C
Maximum Working Pressure at +50°C 36.6 MPa
Minimum Working Pressure at 0°C 27 MPa
Cylinder Volume 80 L / 140 L
Filling Weight @ 300 bar 33.2 kg / 58.2 kg
System Operating Voltage 220 V AC / 24 V DC
Start Mode Electrical Automatic / Electrical Manual / Mechanical Emergency
Class A Fire Extinguishing Concentration 28.1%
Class B Fire Extinguishing Concentration 33.8%
Class A Design Concentration 36.5%
Class B Design Concentration 43.9%
Design Concentration for Occupied Area 37.5%–43%
Executive Standard GB25972-2010

 Extinguishing Agent Composition

Component Composition Purity Water Content Oxygen Content
Nitrogen (N₂) 52% ± 4% >99.9% <5 ppm <3 ppm
Argon (Ar) 40% ± 4% >99.9% <4 ppm <3 ppm
Carbon Dioxide (CO₂) 8% +1% / -0.0% >99.5% <10 ppm <10 ppm

 System Operating Principle

When a fire is detected, the control system initiates alarm, linkage shutdown, delay timing and cylinder release in sequence.

Depending on the selected operating mode, the system can be activated automatically, electrically manually or mechanically in an emergency.

After activation, the IG541 extinguishing agent is released from the storage cylinders through the manifold and discharge nozzles into the selected protected area.

Automatic Control

When the controller is set to automatic mode, the system can:

Fire Detection → Audible & Visual Alarm → Equipment Linkage → Delay → Cylinder / Selection Valve Release → IG541 Discharge

The manual specifies a preset delay of 30 seconds in the automatic control sequence.

Electrical Manual Control

When set to manual mode, alarm and linkage actions continue automatically, but agent release requires authorized personnel to operate the manual release control.

Mechanical Emergency Operation

If the control system fails during a fire, trained personnel can perform the mechanical emergency operating procedure described in the manual.

Main System Components

Depending on the approved system configuration, the IG541 system may include:

  • Extinguishing-agent cylinder group
  • Container valve
  • Gas driver
  • Driving cylinder group
  • Solenoid actuator
  • Selective / distributing valve
  • High-pressure hose
  • Flow check valve
  • Gas flow check valve
  • Pressure switch
  • Manifold
  • Manifold safety valve
  • Discharge nozzle
  • Low-discharge and high-seal valve
  • Decompressor
  • Pilot pipeline
  • Distribution pipework

The actual quantity and configuration shall be determined according to the project design.

 Solenoid Actuator

Parameter Specification
Model MFZ1-90F/24V
Nominal Voltage DC24 ± 3 V
Rated Current 1.5 A
Rated Force 90 N
On-Load Factor 100%

Selective Valve

The selective valve is used in a combined distribution system to direct the extinguishing agent to the required protected zone.

Available nominal sizes include:

  • DN32
  • DN40
  • DN50
  • DN65
  • DN80

The listed nominal working pressure is 36.6 MPa.

High-Pressure Hose

Parameter Specification
Model HRG15/36.6
Nominal Diameter 15 mm
Design Pressure 36.6 MPa
Inlet / Outlet Size M30×1.5
Length 450 mm

 Pressure Switch

The pressure switch provides a discharge confirmation signal when extinguishing agent is released.

Parameter Specification
Model HXF0.8/36.6
Design Pressure 36.6 MPa
Minimum Working Pressure 0.8 MPa
Connection R1/2 in.

 Discharge Nozzle

The standard nozzle specified in the manual is DPT32.

Parameter Specification
Model DPT32
Size 60 × 55 mm
Connection RC1 1/4 in.
Height 50 mm
Discharge Pattern 360°

The manual specifies:

  • Maximum submerged-nozzle installation height: 5 m
  • Minimum submerged-nozzle installation height: 0.5 m
  • Protection radius at maximum installation height: ≤5 m
  • Protection radius at minimum installation height: ≤3.5 m

Different nozzle types may be designed according to site requirements.

Applications

The manual lists the following typical protected areas:

  • Computer rooms
  • Data rooms
  • Telecommunication rooms
  • Transformer rooms
  • Electrical switch rooms
  • Generator rooms
  • Instrument rooms
  • Control centres
  • Archives
  • Libraries
  • Cultural relic storage areas
  • Other enclosed industrial spaces

 System Configurations

Combined Distribution System

One extinguishing system serves several protected areas. Only one protected zone is discharged at a time.

Unit Independent System

One dedicated extinguishing system protects one individual protected area.

Installation and Maintenance

Installation, commissioning and maintenance should be carried out by trained personnel familiar with pressurized-gas fire suppression systems.

The manual specifies that:

  • Cylinders shall be securely fixed.
  • A clear operating aisle of at least 1 m shall be maintained.
  • Distributing-valve mounting height shall not exceed 1.7 m.
  • Pneumatic pipelines shall be supported at spacing not greater than 0.6 m.
  • The final pipe support shall be located within 300 mm of the nozzle.

Routine inspection is specified as weekly, while periodic maintenance shall be carried out at least once per year.

Driving cylinders and extinguishing-agent storage cylinders are specified for inspection every 5 years according to the applicable seamless-steel-cylinder standard.
