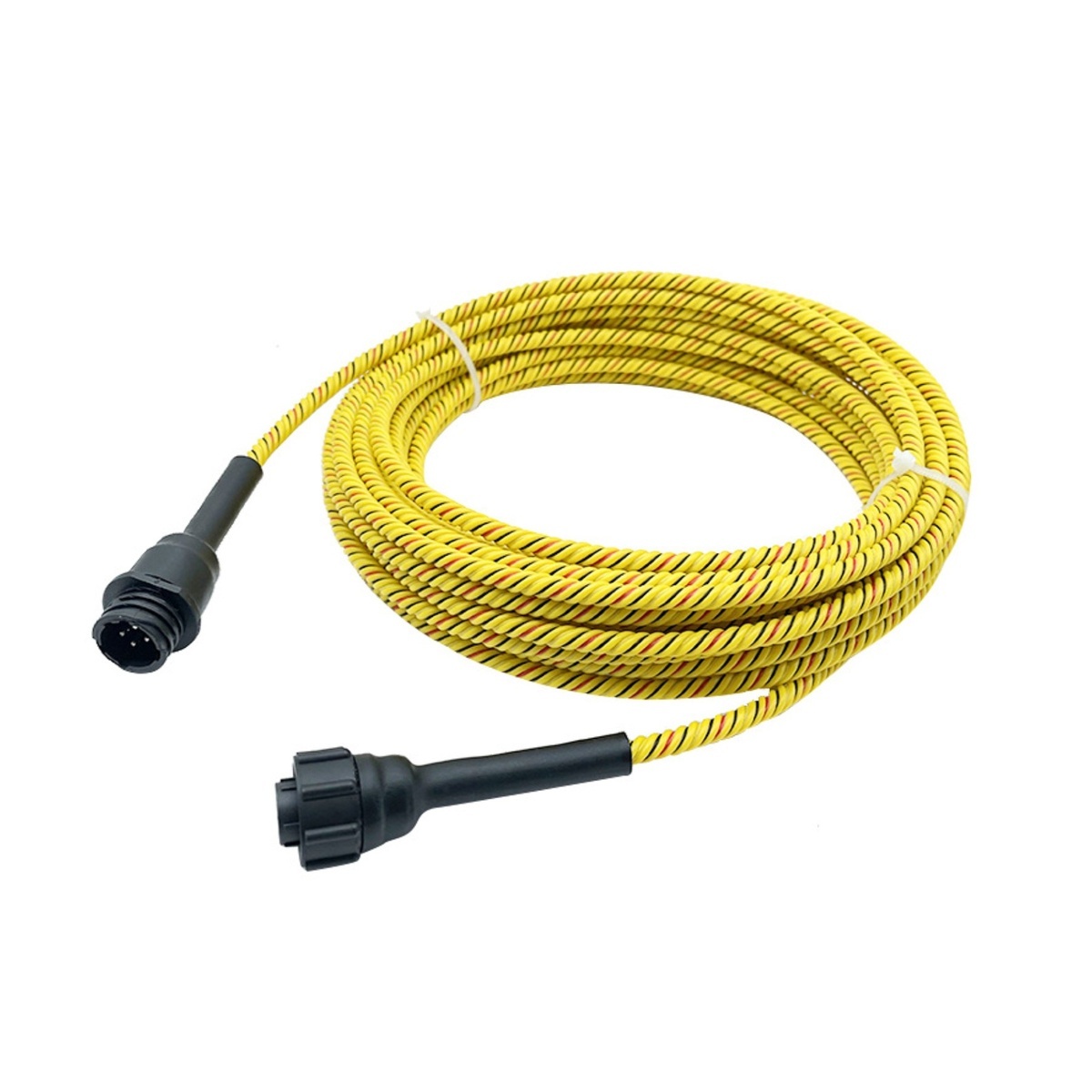

LS101 Water Leak Detection Cable System with Locating Alarm Module

No.AT-LS101
ANWETECH AT-LS101 is a locating water leak detection cable system designed for data centers, warehouses, smart buildings, museums, archives and equipment rooms. When conductive liquid contacts the sensing cable, the module provides fast alarm output and displays the leak position in meters.
  • LS101 Water Leak Detection Cable System with Locating Alarm Module

Description

Product Overview

The ANWETECH AT-LD101 Water Leak Detection Cable System is designed to monitor water leakage and other conductive liquid leakage along a sensing cable route. It is suitable for areas where early leak detection and accurate leak location are important, such as data centers, IDC rooms, archives, libraries, warehouses, equipment rooms and smart buildings.

When water or conductive liquid touches the leak sensing cable, the AT-LD101 module detects the change, activates the alarm output, and displays the leak location on the LCD screen. The leak position is shown in meters, helping maintenance teams quickly locate the leakage point and reduce inspection time.

The system supports RS485 communication with MODBUS-RTU protocol, allowing integration with BMS, PLC, monitoring panels or remote alarm systems. It also provides dry contact relay outputs for leak alarm and fault indication.

Key Features

  • Locating water leak detection system with LCD leak location display
  • Supports conductive leak sensing cable up to 1500 m
  • Fast response time of ≤ 8 seconds
  • Leak location accuracy: 1 m ± 2%
  • Detects conductive liquid leakage such as water or electrolyte
  • Alarm relay output for leak indication
  • Fault relay output for cable break or wiring fault indication
  • RS485 communication with MODBUS-RTU protocol
  • Suitable for BMS, PLC and remote monitoring integration
  • Manual reset after leak alarm is cleared
  • DIN35 rail mounting for control cabinet installation
  • Industrial-grade design for stable operation and reduced false alarms

Optional Accessories

The following accessories may be used according to the project design and installation layout:

  • Leak sensing cable
  • Leader cable
  • Jumper cable
  • Cable connector
  • Cable terminal
  • Cable fixed clip
  • Waterproof enclosure or control box, when field installation requires protection

Note: Accessory length, material and package quantity should be confirmed according to the project requirement.

Technical Specifications

Category Parameter Specification
Model Product model AT-LD101
Detection type Detection principle Conductive liquid leak detection via sensing cable
Sensing cable Maximum sensing cable length 1500 m
Sensing performance Response time ≤ 8 s
Sensing performance Detection accuracy 1 m ± 2%
Display Leak location display LCD display, unit: meter
Communication Interface RS485
Communication Protocol MODBUS-RTU
Communication Serial settings 9600 bps, N, 8, 1
Communication Device address 1–254, default 1
Relay output Contact type Dry contact, 2 sets
Relay output Alarm output Normally Open, closes during leak alarm
Relay output Fault output Normally Closed, opens during fault
Relay rating AC rating 250 VAC / 100 mA
Relay rating DC rating 24 VDC / 500 mA
Power supply Supply voltage 24 VDC nominal, 16–28 VDC range
Power consumption Power < 0.3 W
Environment Operating temperature -20°C to +50°C
Environment Operating humidity 0–95% RH, non-condensing
Mechanical Dimensions 70 × 86 × 58 mm
Mechanical Housing White flame-retardant ABS
Mechanical Mounting DIN35 rail mounting

Detection Distance / Performance Data

Item Data
Maximum sensing cable length 1500 m
Response time ≤ 8 s
Leak location accuracy 1 m ± 2%
Leak location unit Meter
Normal LCD display “----”
Fault LCD display “FFFF”
Leak LCD display Numeric leak location in meters

Wiring / Signal Output Description

The AT-LD101 module connects to the leak sensing cable through dedicated sensing cable terminals. The leak location is calculated from the start sequence of the sensing cable. Leader cable length is not included in the displayed leak location.

The module provides two relay outputs:

  • Alarm Output: COM1–NO1, normally open, closes when leakage is detected.
  • Fault Output: COM2–NO2, normally closed during normal operation, opens during cable fault or wiring fault.

The relay outputs are dry contacts. They are suitable for signal input to fire alarm panels, BMS, PLC, monitoring panels, sounder circuits or remote alarm modules. For high-current or high-voltage equipment, an interposing relay must be used.

The RS485 port supports MODBUS-RTU communication. It can be connected to a BMS, PLC or remote monitoring system to read module status, cable fault status and leak location.

Installation / Mounting Notes

The AT-LD101 module should be installed inside a control cabinet, electrical enclosure or waterproof box. The module itself is not designed for direct outdoor or wet-area exposure.

The sensing cable should be installed along the potential leakage path, such as under water pipes, around equipment bases, under raised floors, near drainage channels, around storage areas or along perimeter risk zones.

Installation notes:

  • Install the module in a dry and accessible location.
  • Use DIN35 rail mounting for the module.
  • Avoid installing the sensing cable near high-temperature sources.
  • Avoid sharp edges or objects that may damage the cable jacket.
  • Avoid strong magnetic field areas when possible.
  • Use shielded twisted-pair cable for RS485 communication.
  • Use dedicated leader cable and connectors when available.
  • Do not directly control high-power devices through the module relay output.
  • Use an interposing relay when connecting valves, pumps, fans or other external equipment.

Application Areas

  • Data centers and IDC rooms
  • Server rooms
  • UPS rooms
  • Electrical equipment rooms
  • Smart buildings
  • Museums and archives
  • Libraries
  • Warehouses
  • Water pipe areas
  • HVAC and air-conditioning drainage areas
  • Under raised floors
  • Equipment rooms requiring early water leak warning
  • Building construction areas with temporary water leakage risk
