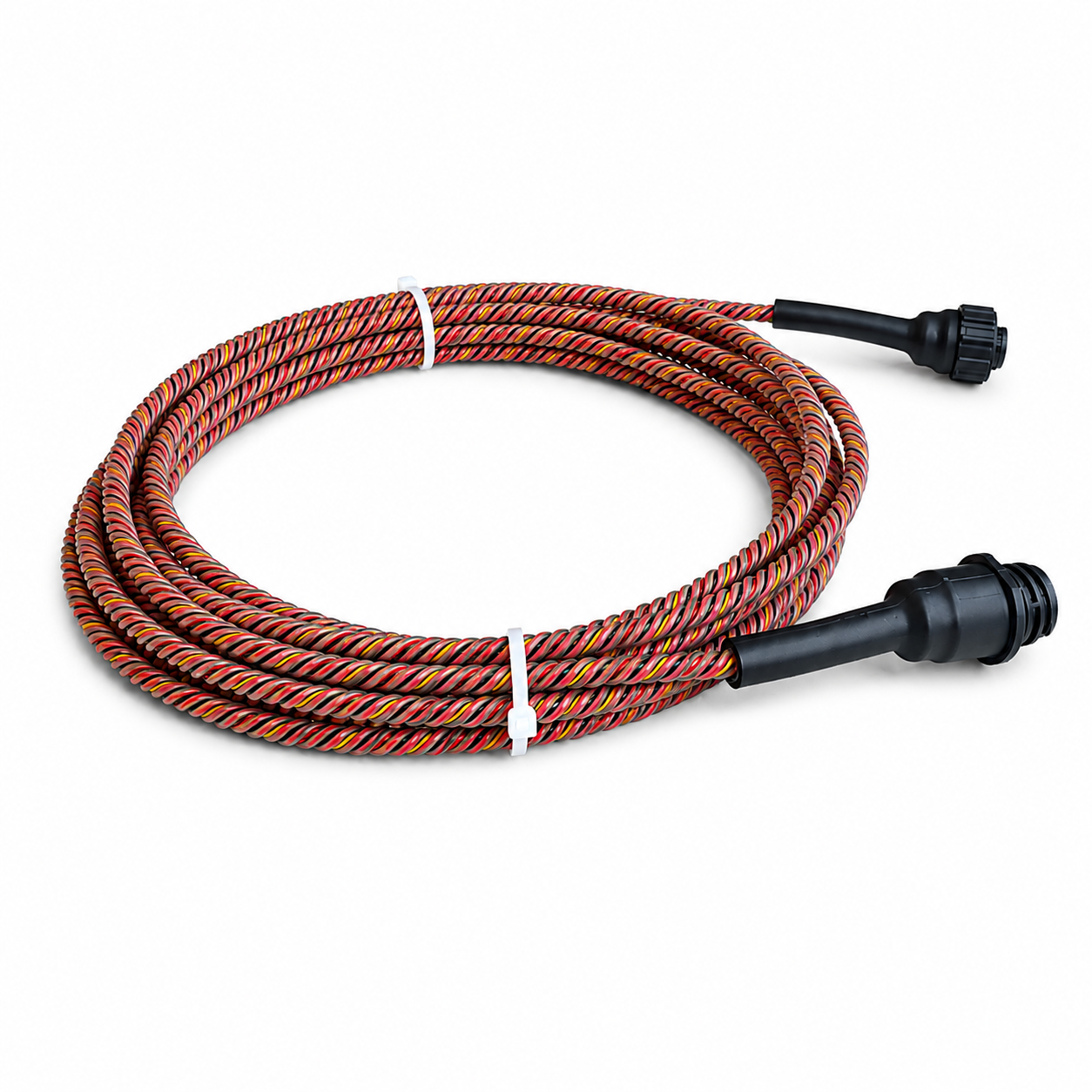

The ANWETECH Acid & Alkali Liquid Leakage Sensing Cable is designed for detecting leaks of acidic and alkaline liquids in industrial and chemical environments. When liquid leakage occurs at any point along the sensing cable, the connected leak detection controller can trigger an alarm.
When used with a positioning leak detection controller, the system can also help identify the leakage location, allowing maintenance teams to respond quickly and reduce equipment damage, chemical exposure, and operational risk.
This sensing cable is suitable for detecting water, strong acids, and strong alkalis. It features strong corrosion resistance, high tensile strength, flexible installation, quick-connect terminals, and customizable cable lengths for different project requirements.
| Item | Specification |
|---|---|
| Cable Material | Fluoropolymer + Alloy Wire |
| Core Resistance | 13 ohms per meter |
| Cable Color | Purple |
| Cable Diameter | 6 mm |
| Tensile Strength | 90 kg |
| Cable Weight | 40 g per meter |
| Maximum Exposure Temperature | 85°C |
| Installation Type | Sensing cable installation |
| Connector Type | Quick-connect terminal available |
| Cable Length | 5 m, 10 m, or customized length available |
The sensing cable has been tested for chemical resistance. After immersion in chemicals at 23°C for 3 days, the cable continued to function normally.
Tested chemicals include:
| Chemical | Concentration |
|---|---|
| Concentrated Sulfuric Acid | 96% |
| Hydrochloric Acid | 37% |
| Nitric Acid | 60% |
| Formic Acid | 88% AR Grade |
| Sodium Hydroxide | 25% |
| Xylene | 100% AR Grade |
| Ethylene Glycol | 100% AR Grade |
This leakage sensing cable can be connected to a leak detection controller to form a complete liquid leakage monitoring system.
Typical system logic:
Leakage sensing cable detects liquid leakage
→ Leak detection controller receives signal
→ Alarm output is activated
→ Maintenance team locates and handles the leakage area
For projects requiring leakage positioning, the cable can be used with a positioning leak detection controller to help display the leakage location.
