HFC-227ea FM200 total-flooding fire extinguishing system is an engineered clean-agent solution designed for critical areas such as data centers and control rooms. It uses UL-listed HFC-227ea agent (Heptafluoropropane), providing fast, residue-free fire suppression with zero ozone depletion potential.
Product Description:
The FM200 HFC-227ea Clean Agent Fire Suppression System is a UL-listed engineered type system developed for protection of high-value assets and mission-critical facilities. It employs HFC-227ea (Heptafluoropropane) as the extinguishing agent — a colorless, odorless, and electrically non-conductive gas that leaves no residue after discharge. The agent is environmentally safe with ODP = 0 and a moderate atmospheric lifetime of 36.5 years.

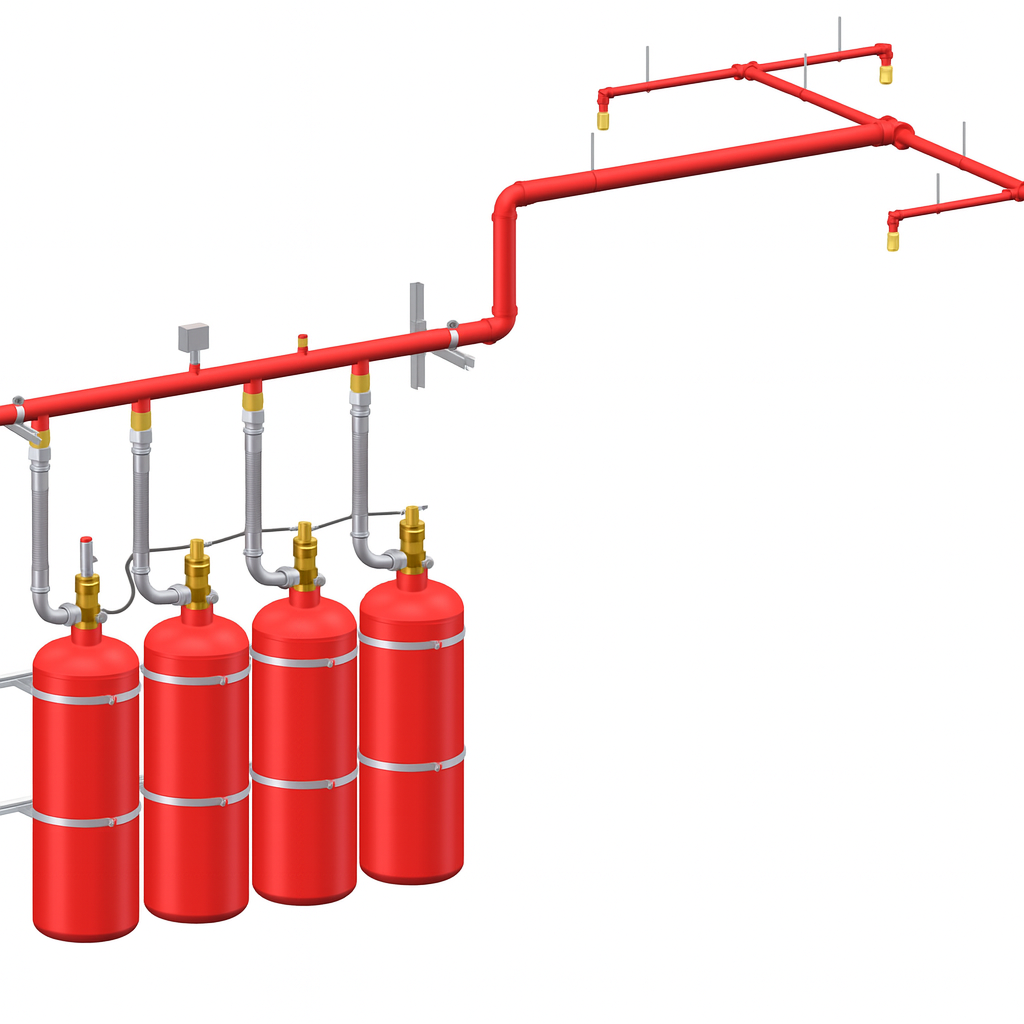

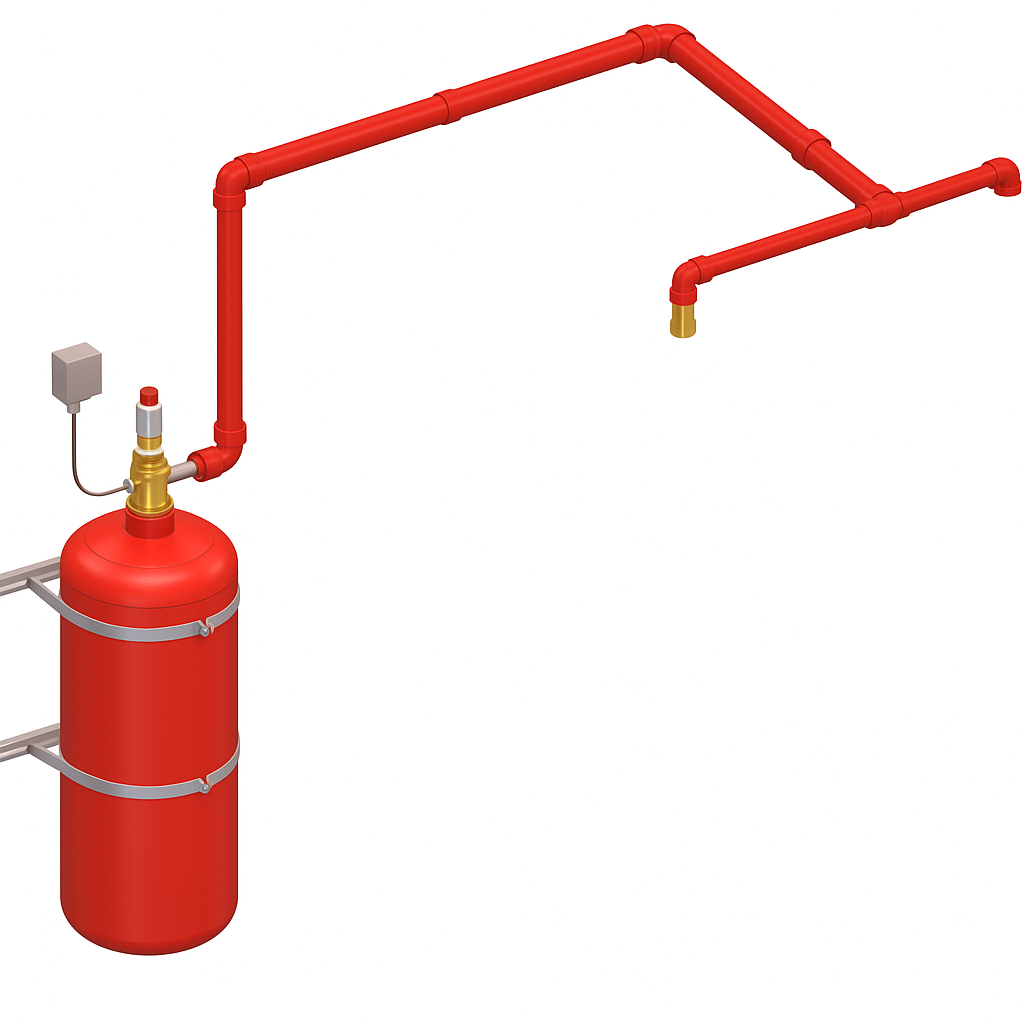

The system consists of super-pressurized cylinders (25 bar or 42 bar) filled with HFC-227ea and dry nitrogen, connected to a manifold and discharge nozzles. It can be activated automatically, electrically, or mechanically and is compliant with NFPA 2001 and UL 2166 standards. Each system is custom-engineered through hydraulic flow calculations to ensure uniform distribution and optimum extinguishing concentration in the protected area.
The HFC-227ea agent extinguishes fire primarily by heat absorption (80 %) and secondarily by chemical inhibition (20 %), allowing rapid fire knock-down while remaining safe for occupied spaces below the NOAEL level (9 %).
Main Features:
• UL Listed and NFPA 2001 compliant
• Clean, colorless, non-conductive, and residue-free agent
• Zero Ozone Depletion Potential (ODP = 0)
• Safe for use in normally occupied areas (NO AEL ≤ 9 %)
• 25 bar / 42 bar super-pressurized cylinder options
• Modular design for single or multi-zone applications
• Fast discharge and effective total flooding coverage
• Environmentally approved by EPA SNAP program
Technical Parameters:
Extinguishing Agent: HFC-227ea (Heptafluoropropane)
Cylinder Volume: 16.6 L – 180 L
Working Pressure: 25 bar or 42 bar @ 21 °C
Design Concentration: Class A 6.7 %, Class B 8.7 %, Class C 7.0 %
Operating Temperature: 0 °C – 54 °C
Storage Temperature: -20 °C – +60 °C
Safety Limit (NO AEL): 9 % for ≤ 5 minutes exposure
Cylinder Standard: TPED / GB / DOT / ISO 9809
System Type: Engineered total flooding
Actuation Mode: Automatic, Electrical Manual, Pneumatic Manual
Certifications: UL Listed / NFPA 2001 Compliant
Applications:
• Data Centers and Server Rooms
• Power and Control Rooms
• Communication Facilities
• Telecom and Broadcast Stations
• Industrial Automation and Process Areas
• Libraries, Archives, and Museums
• Bank Vaults and Control Cabins
• Test Laboratories and Switch Rooms
